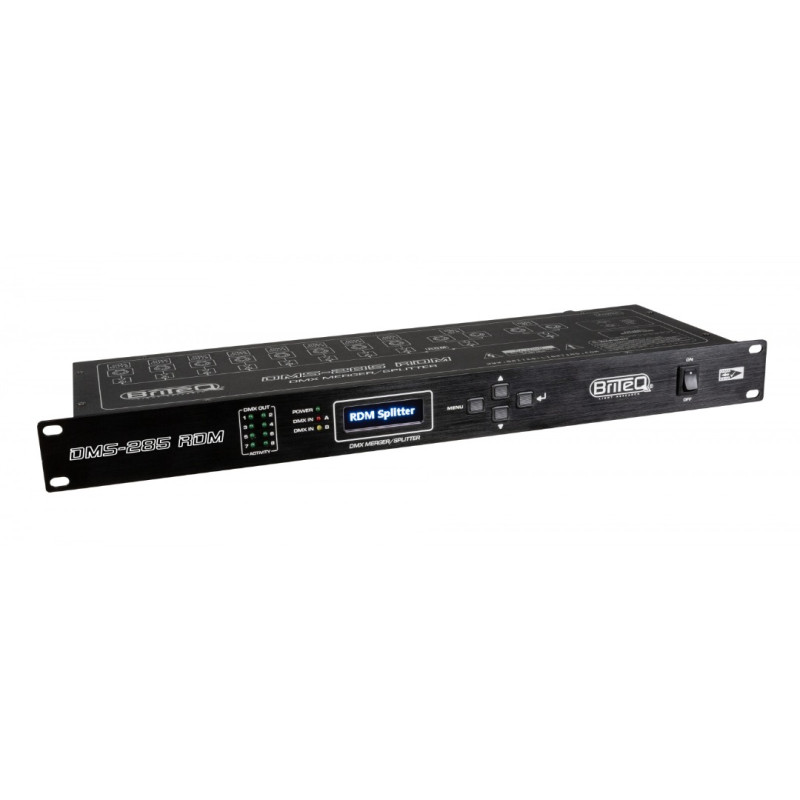

DMS-285 RDM Briteq DMX Merger Splitter Booster (XLR 5p)

Description

DMS-285 RDM Briteq DMX Merger Splitter Booster (XLR 5p)

This DMX merger + splitter + Booster with RDM support is the perfect all-in-one solution to secure your DMX-installations: 100% electrical isolation between all in/outputs!

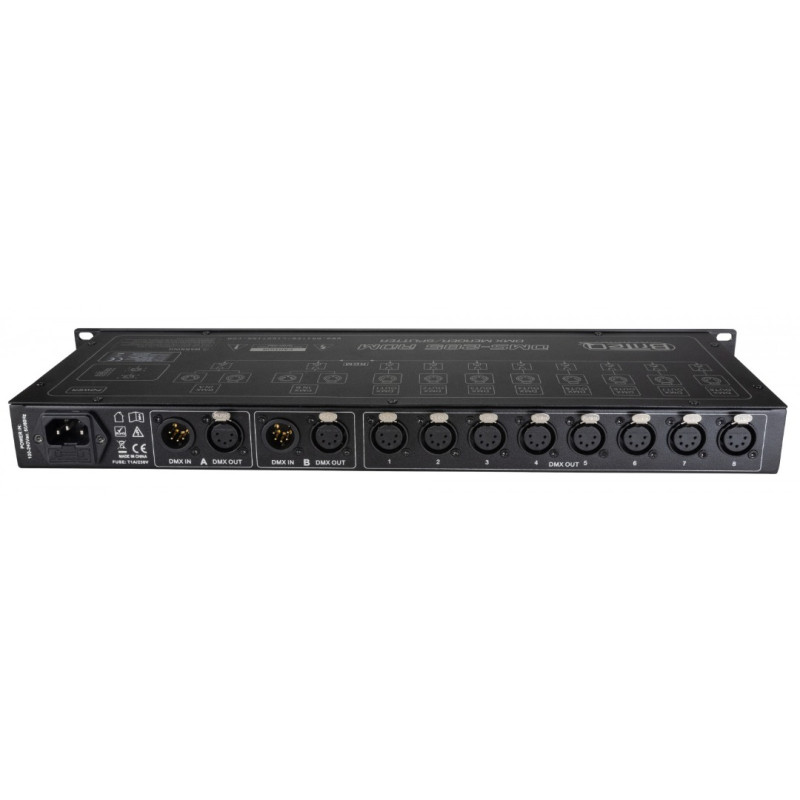

• 2 DMX-inputs + 8 DMX-outputs, each equipped with 5pin XLR-connectors.
• Different port modes to combine 2 DMX signals (on inputs A and B) in different ways:
• HTP : the highest value of 2 identical channels from 2 DMX-signals has priority.
• LTP : the last changed value of 2 identical channels from 2 DMX-signals has priority.
• Backup : when the DMX-signal on input A fails, the DMX-signal on input B takes over immediately.
• A: 1-4 / B: 5-8 : DMX-signal on input A assigned to outputs 1 to 4, input B assigned to outputs 5-8.
• The splitter function distributes the DMX-signal(s) from the A/B input(s) over 8 identical outputs.
• Full electric isolation : all inputs and outputs are 100% isolated from each other: problems that occur on any in/output will not influence the other in/outputs!
• RDM filtering : RDM on both inputs can be filtered to prevent unexpected behavior of DMX equipment.
• The timing of the DMX-outputs can be adapted from 20Hz (slow) to 40Hz (fast) for increased compatibility while connecting “slow” DMX-devices to “fast” DMX-controllers.
• Output behavior can be selected when suddenly both DMX-inputs fail:
• No DMX : no DMX signal on the outputs.
• HOLD : keep the last DMX values on the outputs.
• ZERO : set the DMX values on all outputs to zero.

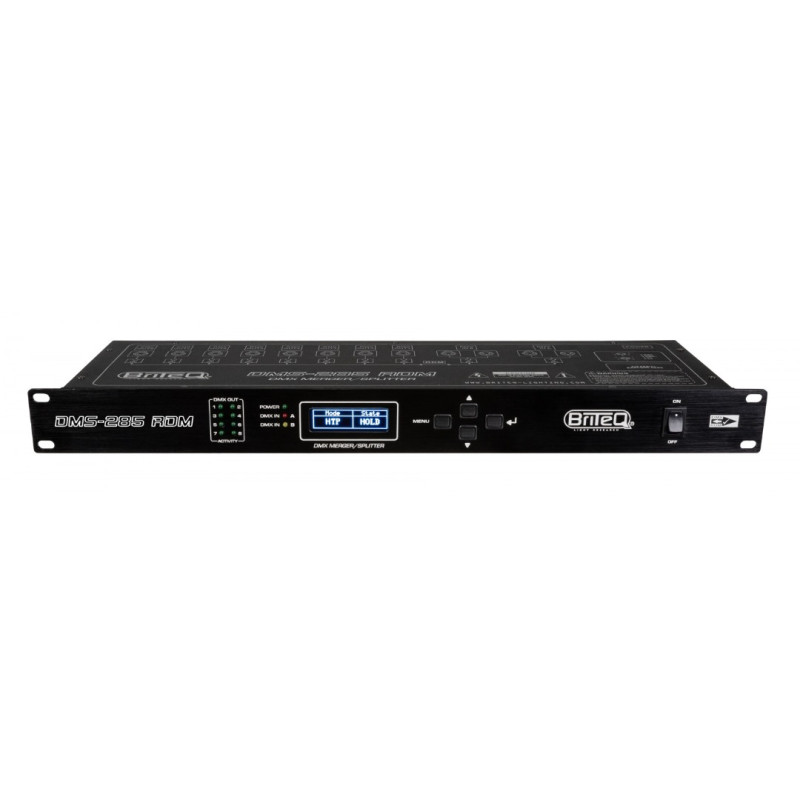

• Easy setup via graphic OLED display.
