AMP300.1H Audiophony Amplifier 100V 1x 300W
- S2 ref: H11632
-
549.-
Incl. VAT - Approx. 3-7 working days
Add to Wish List
Compare this Product
- Amplifier 100V
- 1x 300W
- Class D
Description
Downloads Specification
Reviews (Trustpilot)
Description
AMP300.1H Audiophony Amplifier 100V 1x 300W
- The AMP300.1H is a compact, powerful high-voltage Class D amplifier, ideal for fixed installations.
- This uniquely designed amplifier is engineered to deliver reliable performance and exceptional sound quality in a variety of fixed-installation applications.
- Output power: 300 W
- Compatible with 70 V/100 V lines
- Class D for optimum energy efficiency
- Compact size for easy integration

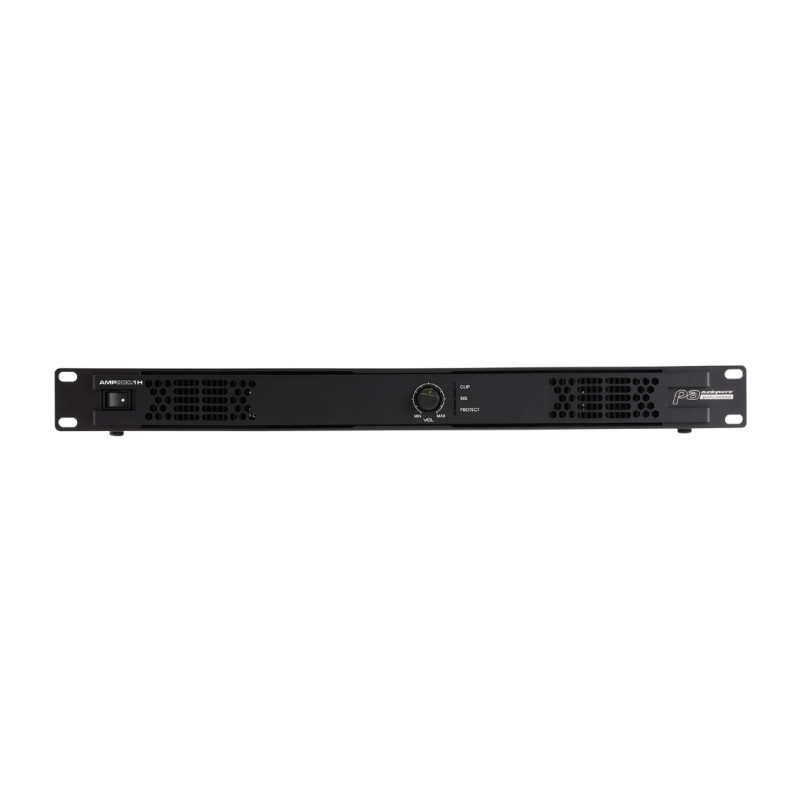

- Integrated volume control
- LED indicators for signal, clip and protection

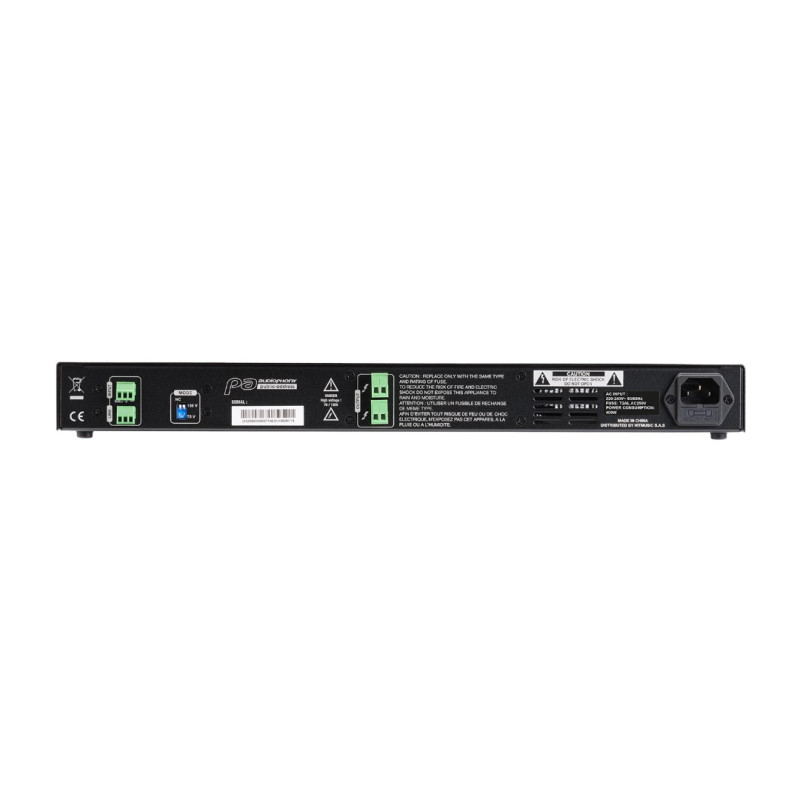

- Input and output connections via Euroblock connectors for fast, secure installation
- Dimensions: 483 x 44 x 360 (mm) 1U 19-inch
Specification
Audio specifications
- Frequency Response: 100 Hz – 20 kHz
- Impedance: 20k balanced, 10k unbalanced
- Sensitivity: 0.9 – 1.1V (0 +/-1 dBV)
- T.H.D. Total Harmonic Distortion: < 0.1% – S/N : > 95 dB
Casing
- Color: Black
- Dimensions: 483 x 44 x 360mm
- Weight: 5kg
Power supply
- Power supply: AC 220-240 V, 50/60 Hz
