BT-THEATRE 50WW WHITE BRITEQ

Description

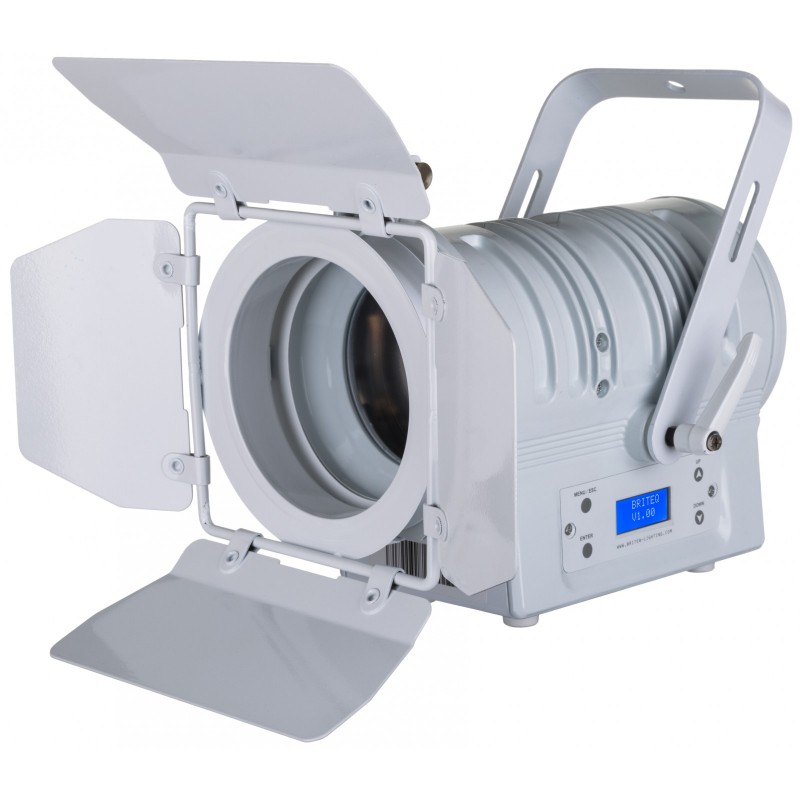

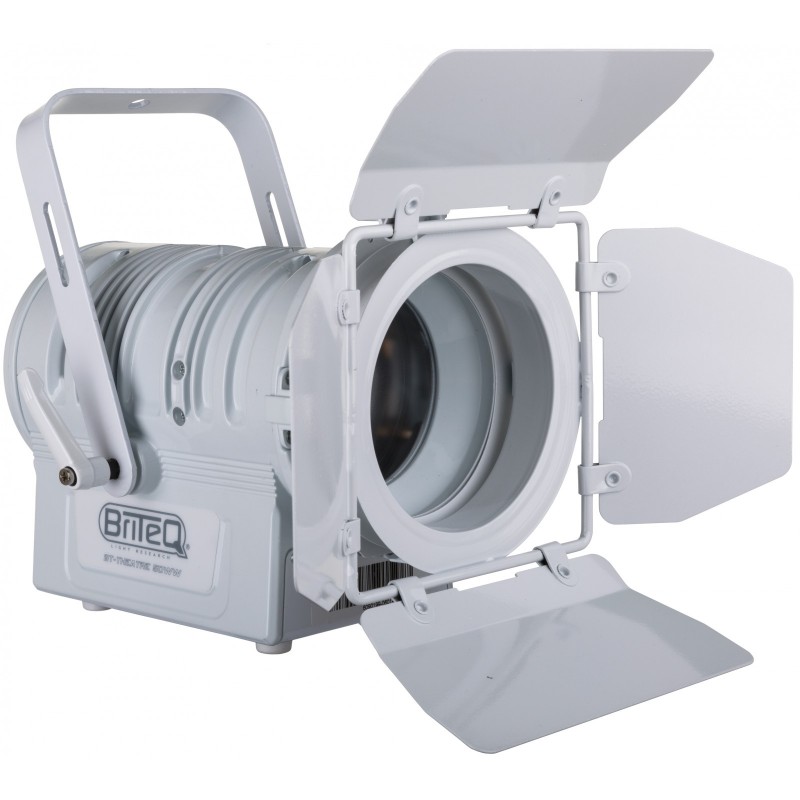

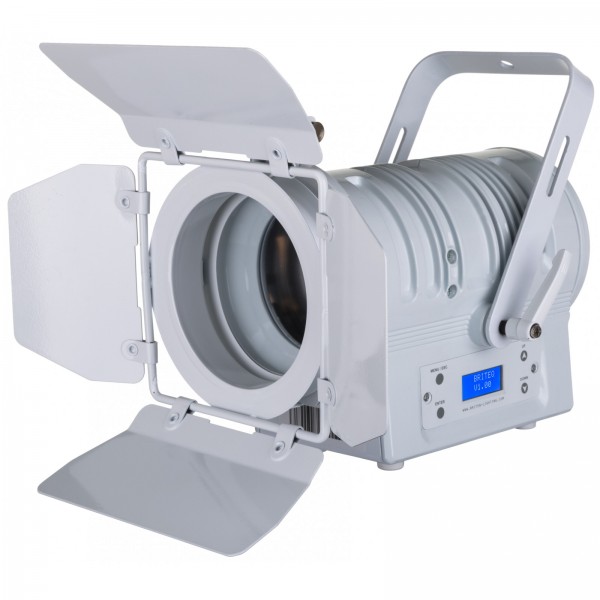

BT-THEATRE 50WW (WHITE)

• Stylish LED theater spot with manual 10° ~ 50° zoom.

• 50watt LED, warm white 3200K with high CRI-factor (>92) for natural colors.

• Thanks to its attractive looks this projector is perfect for use in showrooms, shops, exhibition booths, rental, restaurants, museums, …

• Color frame for use of color filters and four-leaf barndoor included

• No more heavy and expensive dimmer packs needed!

• Completely silent operation, no noisy cooling fan

• Extruded anodized aluminium housing with strong bracket, available in black and white color.

• LCD-display to select different working modes:

• Standalone (master) Mode : set dimmer + strobe (if needed)

• Master/slave mode: connect several projectors together, the first projector controls the others.

• DMX-controlled: 4 different channel modes (8bit and 16bit dimming) for maximum flexibility.

• Selectable lamp behavior: halogen lamp (slow) or led (fast)

• Four dimmer curves: linear, square, inverse square, S-curve

• In case of DMX failure you can choose between blackout and freeze mode.

• RDM-functionality for easy remote setup: DMX addressing, channel mode, …

• Lock function to avoid unwanted altering of the settings.

• Default factory settings + user settings can be saved/loaded.

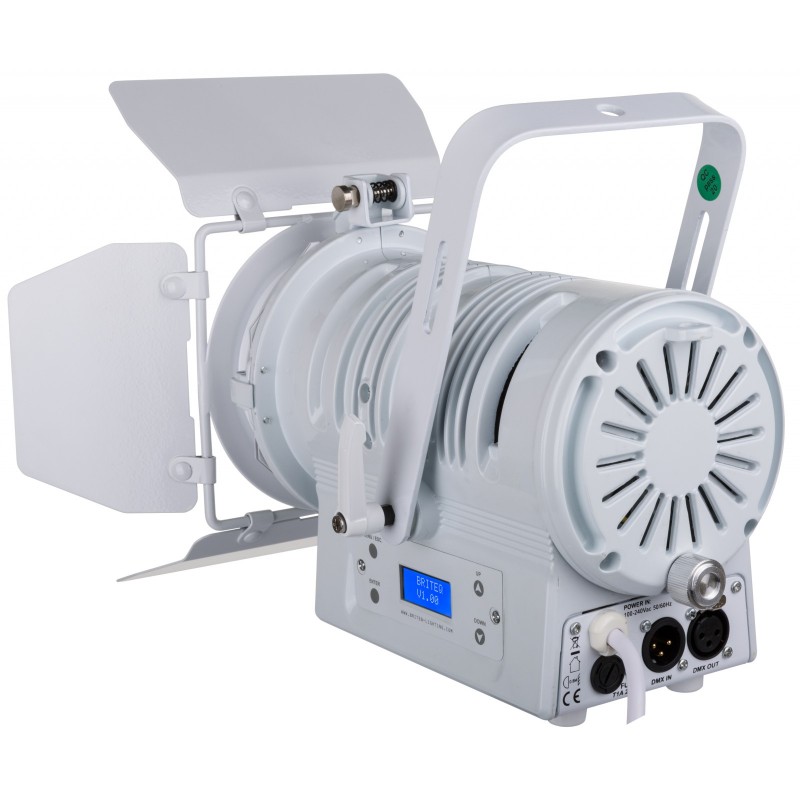

• 3pin DMX in/outputs and fixed 1m power cord with standard mains plug (CEE 7/7)

SPECIFICATIONS

• General : Application    Architectural, Stage & Rental, Theatre

• General : Dimensions (cm)    24,1 x 25,1 x 19,5 cm

• General : Weight (kg)    3.63

• General : Powerinput    AC 100 - 240V, 50/60Hz

• General : Energy Label    No

• General : Power consumption W    50

• General : Color    black

• General : Display    LCD

• General : Fixation    optional standard clamp

• General : IP rating    indoor

• Control : manual    Yes

• Control : Master/Slave    Yes

• Control : DMX M/S    No

• Control : Standalone    fixed

• Control : Type included remote    -

• Control : optional remote    -

• Control : programmable    No

• Control : upgradable software    Yes

• Control : maximum DMX channels    3

• Light : lamp socket    none

• Light : Lux    -

• Light : lumen    -

• Light : lamp    COB

• Light : min. color temperature (K)    3200

• Light : max. color temperature (K)    3200

• Light : CRI    92

• Light : colors    Warm white

• Light : mix colors    No

• Light : fixed gobos    -

• Light : rotating gobos    -

• Light : focus    None

• Light : zoom    Manual

• Light : iris    No

• Light : prism ( # facets + rotating y/n )    -

• Light : frost filter    No

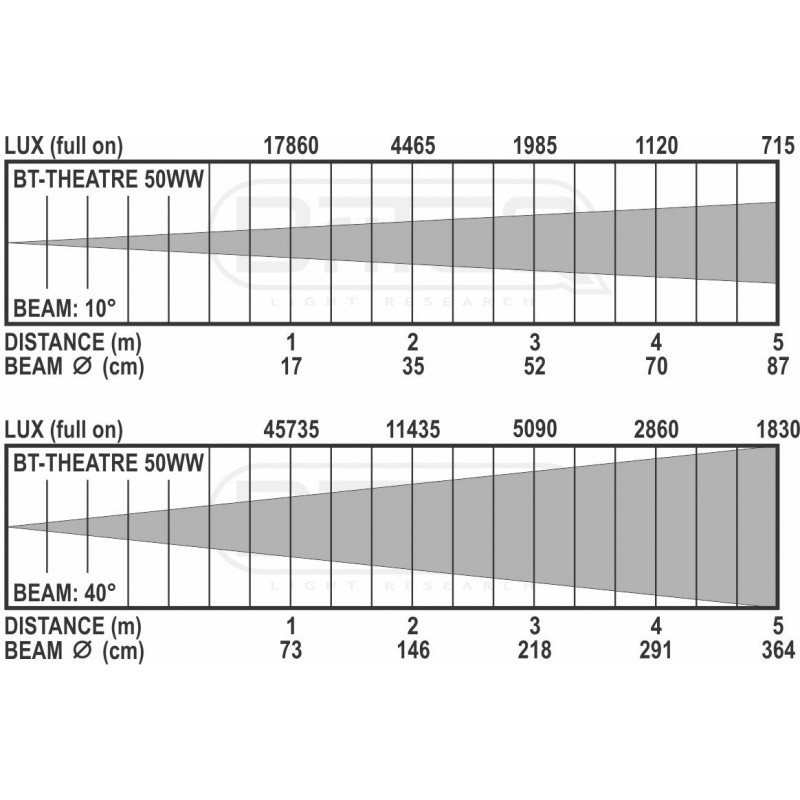

• Light : min. beam angle (°)    10

• Light : max. beam angle (°)    50

• Connections : input    3 pin XLR, rdm

• Connections : output    3 pin XLR

• Connections : XLR 3 pin    Yes

• Connections : XLR 5 pin    No

• Connections : Power Conn.    No

• Connections : midi    No

• Connections : usb    No

• Connections : wifi    no

• Connections : bluetooth    No

• Connections : artnet    No

• Connections : rdm    Yes
