DPA616 Audac 16-ch class D amp

Description

DPA616 Sixteen Channel Class-D Power Amplifier - 16X60W/8X120W

PRODUCT INFORMATION:

The DPA616 is a professional sixteen channel power amplifier, which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 output channels. When used in bridge mode, it can deliver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs. This way, the DPA616 is the perfect solution for installed Multi-Zone audio distribution systems with 8 or 16 zones. It is designed as a no-nonsense amplifier with only the necessary controls and connections, which creates great simplicity in use and installation.

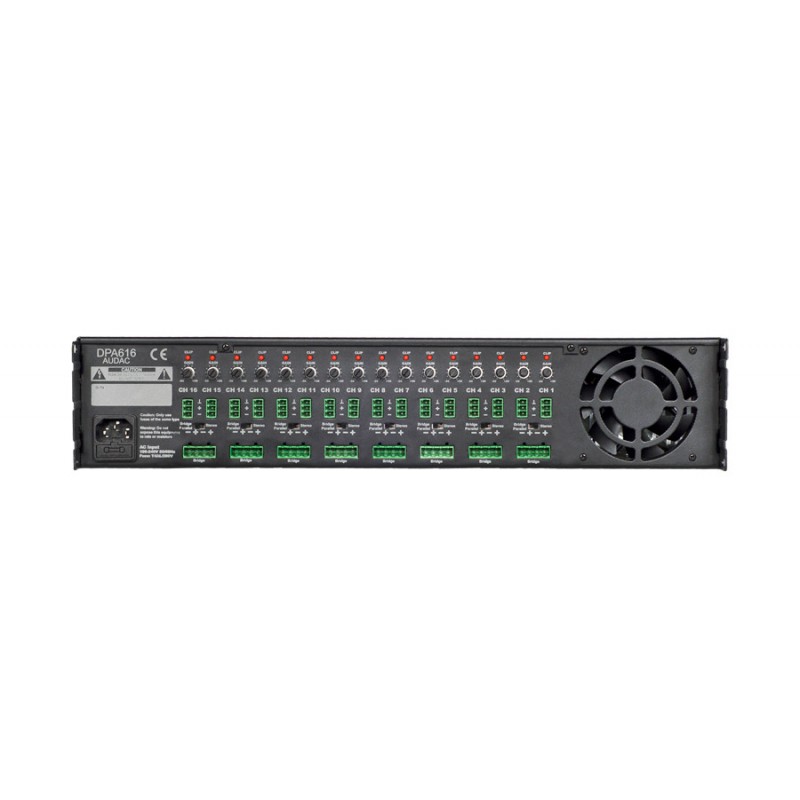

The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors is a Stereo / Bridge & Parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal.

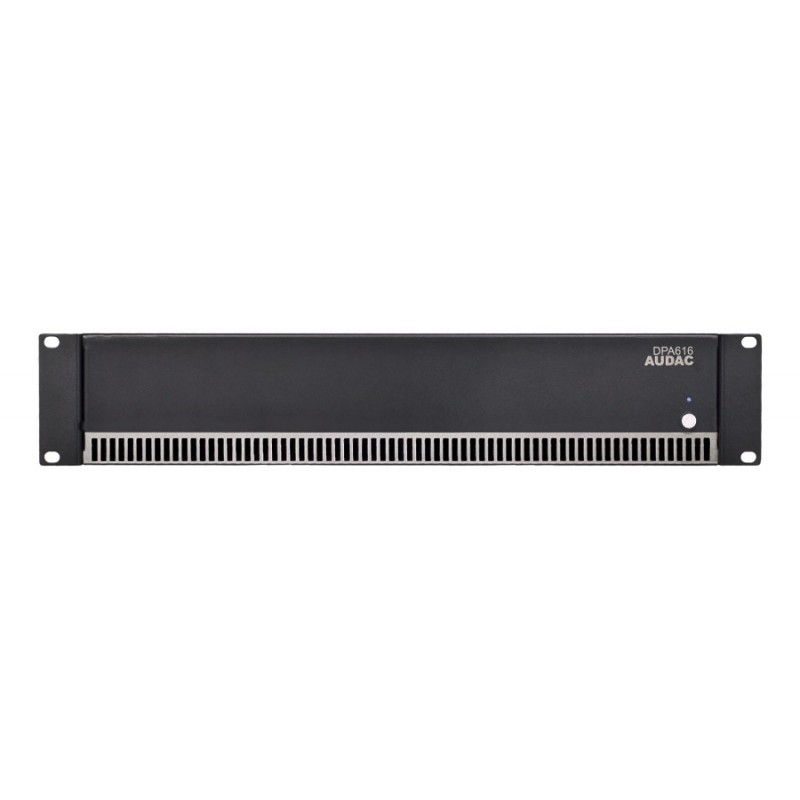

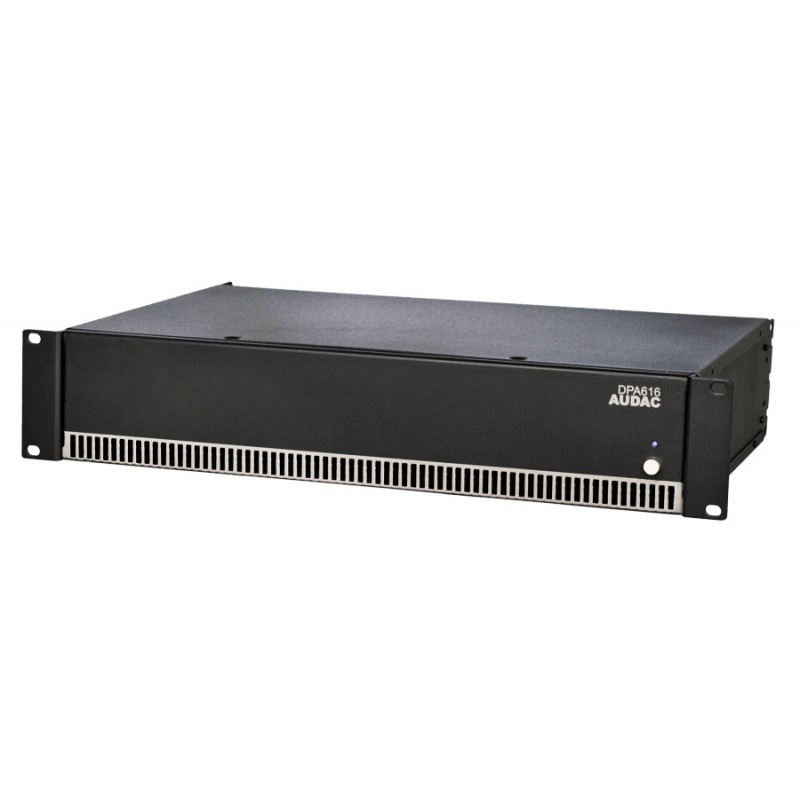

The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary. This all is housed in a double rack space, steel 19” rack mount housing.

HIGHLIGHTS:

• 16 Channel power amplifier
• Class D Technology
• 16 x 60 Watt in Stereo mode
• 8 x 120 Watt in Bridge mode
• Stereo / Bridge & parallel switch
• Terminal block connectors
• Advanced protection circuit
• 19" Mounting device

SPECIFICATIONS:

• Stereo @ 4 Ω: 16 x 60 Watt
• Freq Response: 20Hz - 20kHz
• Stereo @ 8 Ω: 16 x 30 Watt
• Power Supply: 110~240V AC / 50~60 Hz
• Bridge @ 8 Ω: 8 x 120 watt
• Dimensions (W x H x D): 482 x 88 x 322 mm
• Total Harmonic Distortion + Noise: < 0.1%
• Weight: 8.2 kg
• Signal/ Noise: > 100 dB
