Phantom 65 Spot Showtec

Description

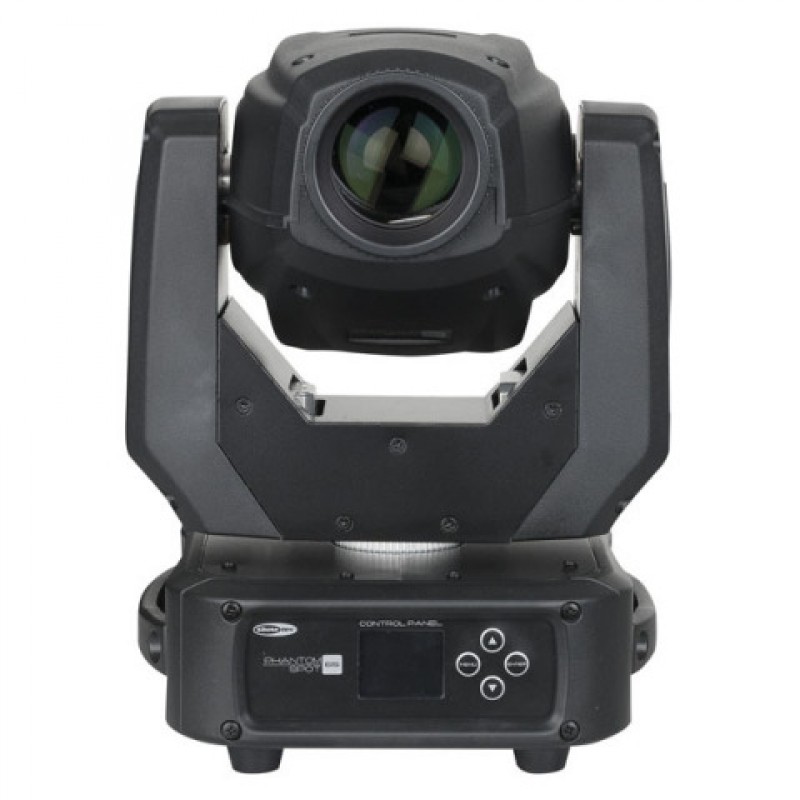

Showtec Phantom 65 Spot

The Phantom 65 Spot is a very compact multifunctional moving light with a 65W white LED light source. It's the ultimate successor of the Spot 50 and comes with a complete package of features. It has 1 colour wheel, 1 rotating gobo wheel, prism and great optics with adjustable manual focus. The small size and light weight make the fixture easy to mount in every position with 1 clamp. With both powercon and dmx in- and output, the Phantom 65 spot is easy to daisychain.

The Phantom series are very reliable and sustainable lighting fixtures with low power consumption and high output. The Phantom Series are going perfectly hand in hand with the lighting demands these days, and give you a total package of modern lighting fixtures such as Spot, wash, beam, matrix FX, and Hybrid. This gives you the opportunity to fill the needs of the most extensive lighting designs.

Features

• 7 Bi-Rotating gobo's & 8 colours

• Powercon In- & Output

• Gobo shake, gobo rotate and 3-facet prism

• Quick Lock Brackets

Specifications

Output

• Beam Angle: 16°

• Light Source: 1 x 65W White LED

• Lux @ 5m: 1870

Electrical

• Input voltage: 100~240VAC, 50/60Hz (auto ranging)

• Power consumption: 180W max. at full output

Control

• On-Board: Full colour display

• Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave

• Control Personality: Advanced 13ch /Basic 8ch

Optical system

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Focus: Manual focus

• Prism: 3-facet prism

Movement

• Pan: 540°

• Tilt: 270°

• Pan/Tilt resolution: 16 bit

• Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Gobos & Colours

• Gobo: 1 glass + 6 metal gobos

• Gobo functions: Gobo-flow effect, Gobo shake

• Rotation: Bi-directional

• Colours: 8 dichroic-filters + white

• Colour functions: Split colours, Rainbow-flow effect

Physical

• Colour: Black

• Housing: Metal & Flame-retardant plastic

• Data Connection: XLR 3&5p in- & output

• Power connection: Pro Power in- & output

• Dimensions (WxDxH): 238 x 202 x 357 mm

• Weight: 6Kg

Certification and Safety

• Certification: CE

• Max. ambient Temp.: 40°C
