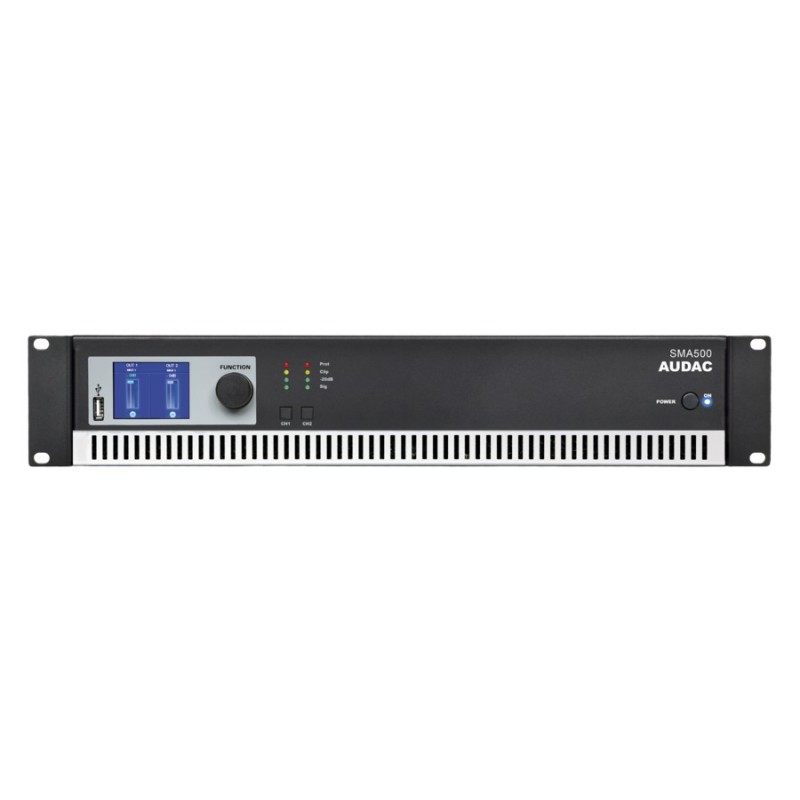

SMA500 AUDAC WaveDynamics™ amplifier

S2 ref: 009799

Add to Wish List Compare this Product

Lightweight Class D amplifier
Advanced DSP & loudspeaker management
2 x 500 Watt

Description Video Downloads Reviews (Trustpilot)

Description

SMA500 WaveDynamics™ Dual Channel Power Amplifier 2 X 500W

PRODUCT INFORMATION:

The SMA & SMQ amplifiers are defining a new standard in affordable amplification for both fixed and mobile audio installations. Their different channel configurations and availability in various output powers are providing an enormous flexibility for numerous applications. The SMA500 is the two channel version of this Class D power amplifier with an output power of 500 Watt for each channel. The WaveDynamics™ DSP processor in combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.

Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer which both have adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given in two different levels (User & Administrator) using password or USB-key protection. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured.

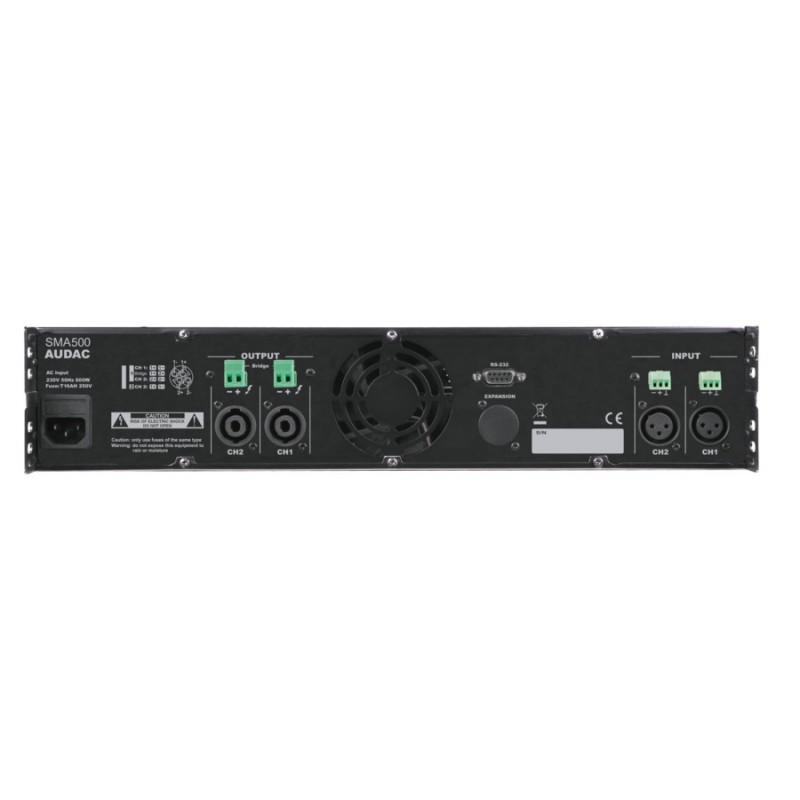

Configuration is made simple by the loudspeaker presets and full system configurations which can selected from a library and uploaded with an USB flash drive. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. A great input flexibility and source compatibility is provided by the input selection matrix in combination with the XLR and terminal block signal connections. The outputs are performed using Speaker and Terminal block connections. System integration is made easy using the RS-232 control port.

HIGHLIGHTS:
