CP12/N BEYMA TWEETER 15 WATT

Description

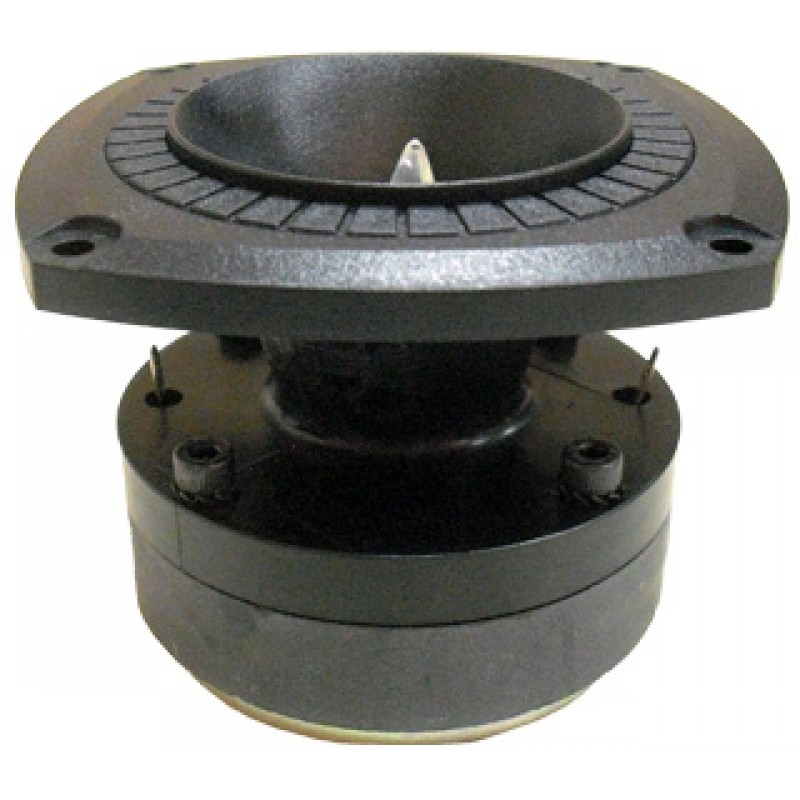

CP12/N COMPRESSION TWEETER
The model CP 12/N is a professional lightweight compression tweeter, featuring an aluminium voice coil-diaphragm assembly. This device has a smooth response in all its frequency range with an incredibly high sound pressure (107 dB), as well as a narrow controlled dispersion for long throw applications.

Features:

• 1" (25.8 mm) edgewound aluminium ribbon voice coil
• Great power handling: 15 w AES
• Similar model to the CP 16, with higher sensitivity: 107 dB
• Designed for outdoor applications, semi-professional systems and high fidelity designs.

Specifications:

• Nominal impedance: 8 ohm
• Minimum impedance  : 8 ohm @ 8 kHz
• Re: 5 ohm
• Power capacity: 15 W AES
• Program power: 30 W
• Sensitivity: 107 dB 1 W @ 1 m
• Frequency range: 3000-20000 Hz
• Recom. crossover frequency: 6 kHz or higher (12 dB/oct. min slope)
• Dispersion HxV: 40º conical
• Voice coil diameter: 25.8 mm 1 in
• Flux density: 1.4 T
• BL factor: 4 N/A
• Diaphragm material: Aluminium
