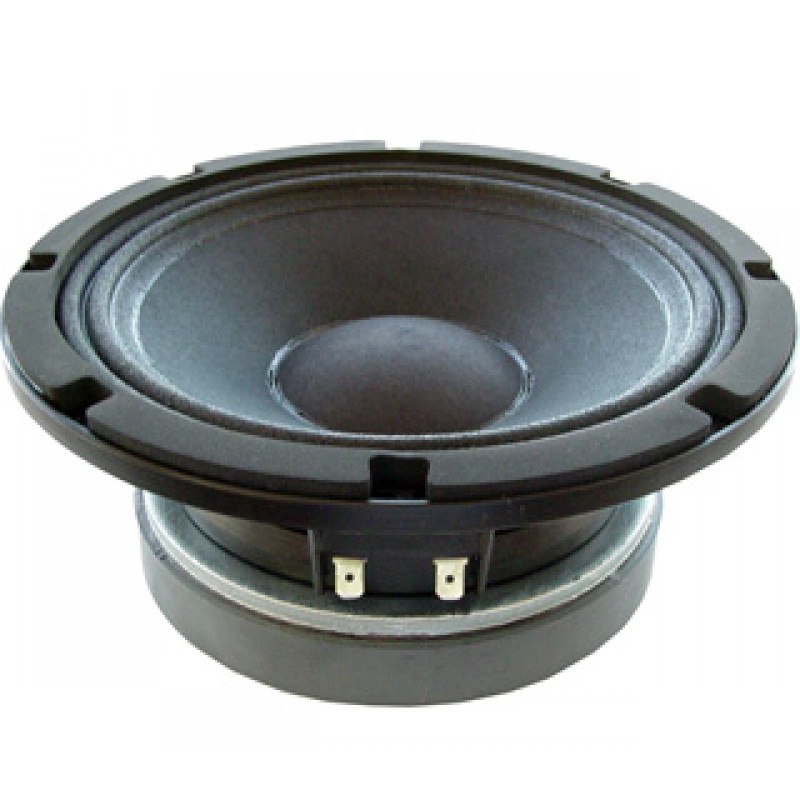

8G40 BEYMA LUIDSPREKER 250W AES @8OHM

Description

8G40: G40 Series.

Features:

• Voice coil: aluminium wire with high temperature bonding strength. Polyimide fiber glass former able to withstand high temperatures.
• Cone: paper cone capable to endure the most extreme conditions.
• Surround: treated cloth to assure good retaining of elasticity in despite of continuing use.
• Spider: treated cotton fibres.
• Metal parts: anti-corrosion coated back plate designed to resist aggressive environmental conditions.
• Basket: specially designed die cast aluminium basket to avoid disturbing resonances.
• Magnet: high Curie temperature ferrite.

Specifications:

• Nominal diameter: 200 mm 8 in
• Nominal impedance: 8 ohm
• Minimum impedance: 7.3 ohm
• Power capacity: 250 W AES
• Program power: 500 W
• Sensitivity: 95 dB 1 W @ 1m @ 2Π
• Frequency range: 65-6000 Hz
• Recommended enclosure volume: 10 / 30 l 0.35 / 1.06 ft.³
• Voice coil diameter: 62.4 mm 2.5 in
• BL factor: 12.2 N /A
• Moving mass: 0.021 kg
• Winding length: 16 mm
• Air gap height: 7 mm
• Xdamage pp: 23 mm

Downloads:

• User Manual
