AMP22 AUDAC Mini stereo amplifier

Description

AMP22 Mini stereo amplifier Audac

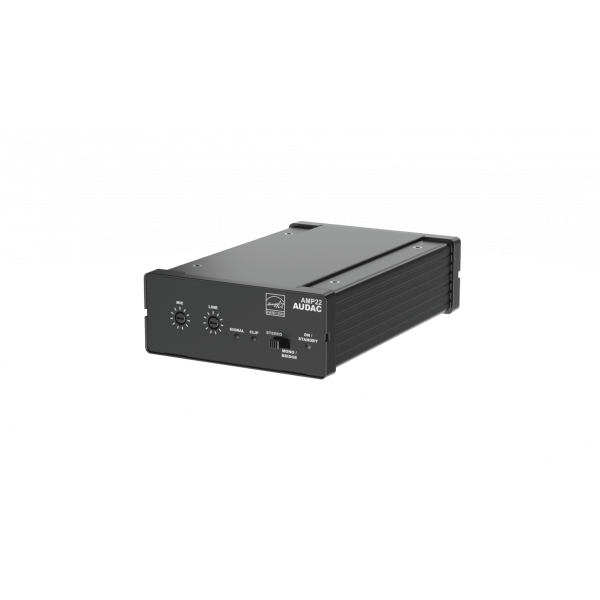

The AMP22 is a 2 x 15 watt mini stereo amplifier that lends itself perfectly to small speaker systems that require compact and economical audio solutions. It provides the ideal solution for applications such as classrooms, offices and meeting rooms where only a small number of speakers are required.

Its compact size and very high efficiency make it perfect for being hidden in a cabinet, on a suspended ceiling or mounted under a desk or table. The combination of the stereo balanced line, with microphone input, makes it perfect for applications where it must be used with projection screens and video sources while a microphone is connected. Two gain potentiometers allow the sensitivity and balance between music and speech to be adjusted, while a switch allows the output channels to be bridged to provide a single channel with merged output power.

An external wall mixer can be connected for applications where local mixing of the inputs is desirable, while long distances between the source and the amplifier can be bridged using simple CAT5E or higher twisted pair cabling. An additional wall controller can be connected to the volume control input for general volume control.

With Class-D amplifier technology, standby mode and the included switching power supply, this unit meets the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product series allow installation on a desk, in a cabinet or in a 19" rack.

Features

• Compatible with WP2xx series
• Input for remote audio and volume control
• Sound amplification with low noise and distortion
• Class-D amplifier technology
• Energy star certified
• Passively cooled housing
• Compact and lightweight design
• Compatible with a wide range of wall-mounted control panels
