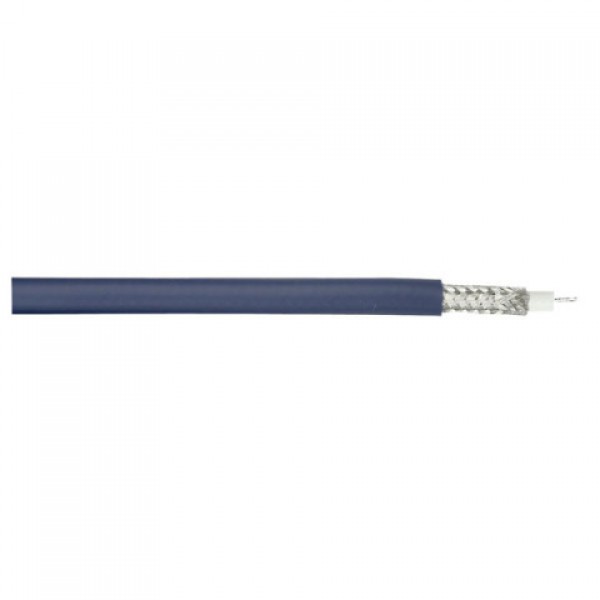

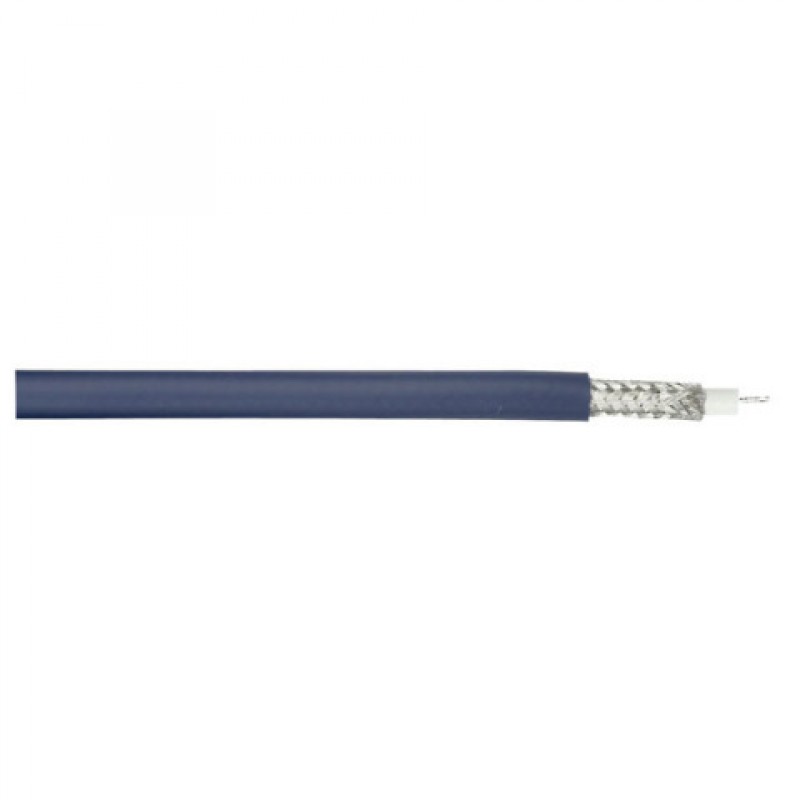

AV-150 DOUBLE SHIELDED HD VIDEO KABEL 100 METER
- S2 ref: D9464
- 356.95
295.-
Incl. VAT- Delivery time on request
Add to Wish List
Compare this Product
Description
Reviews (Trustpilot)
Description
AV-150 DMT DOUBLE SHIELDED HD VIDEO CABLE 100M - DAP-AUDIO
Specifications
Specifications
-
Conductor drains: Ø 7 x 0.3 mm
-
Oxygen Free Copper
-
Conductor insulation: Ø 3,7 mm
-
Foam Polyethylene
-
Conductor resistance: 34,85 Ohm
-
Shield-1: 16 x 7 x 0,12
-
braided silver
-
plated copper
-
Shield-2: 16 x 8 x 0,12
-
braided Oxygen
-
Free Copper
-
Outer Jacket: Ø 6 mm
-
matte blue PVC
-
Nominal Capacitance: 56 pF/m
-
Nominal impedance: 75 Ohm
-
Weight/100m: 7.0 kg
-
Nominal Attenuation /100m:71,5 MHz: 10.0 dB /135 MHz: 12.5 dB /270 MHz: 17.7 dB /360 MHz: 20.3 dB540 MHz: 25.3 dB /750 MHz: 31.5 dB /1500 MHz: 42.6 dB /3000 MHz: 60.7 dB
