BLX14E/SM31 Fitness Headset System ( 518-542 Mhz) Shure

Description

BLX14/SM31 SHURE - Wireless Headset System with SM31FH

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless Systems combine professional quality sound with simple setup and an intuitive interface for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it’s the most accessible way to own the stage.

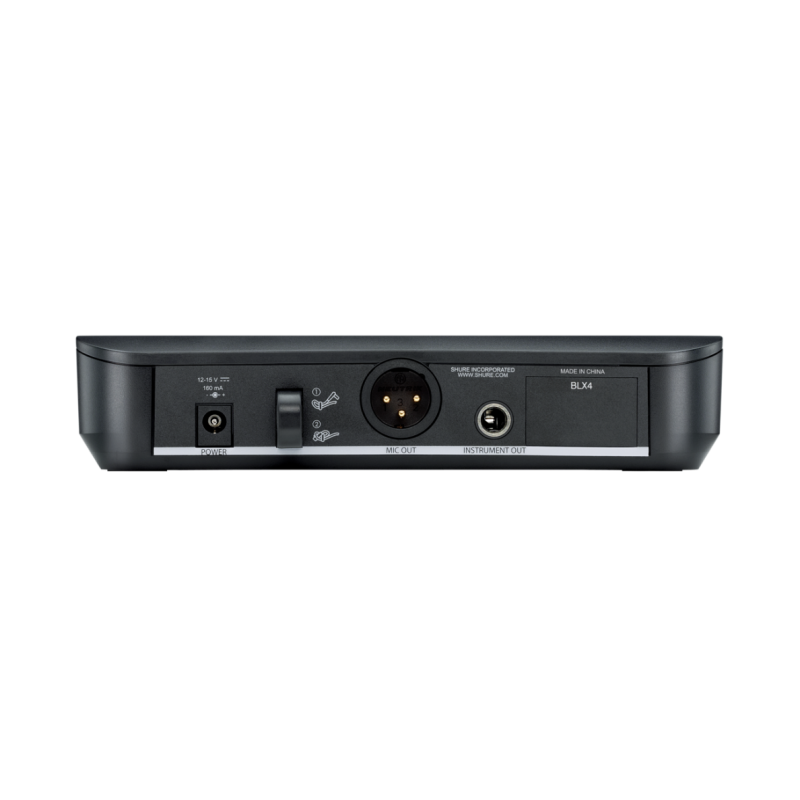

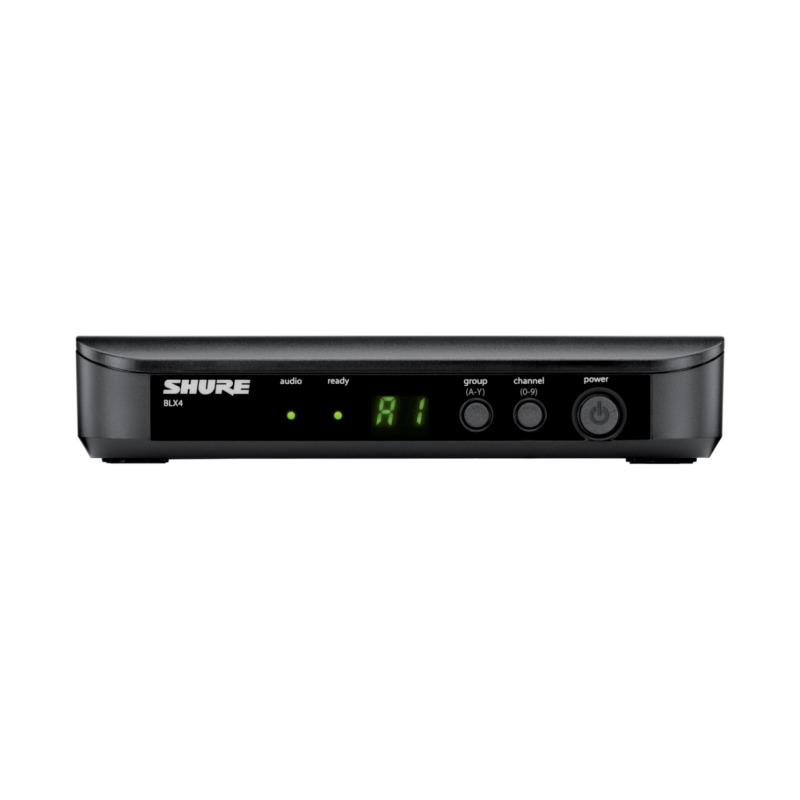

BLX4 - Diversity Receiver

•  Adjustable output level
• Removable antennas for quick antenna distribution
• LCD display with detailed RF and audio metering
• Rugged metal construction,
• rack mount hardware included

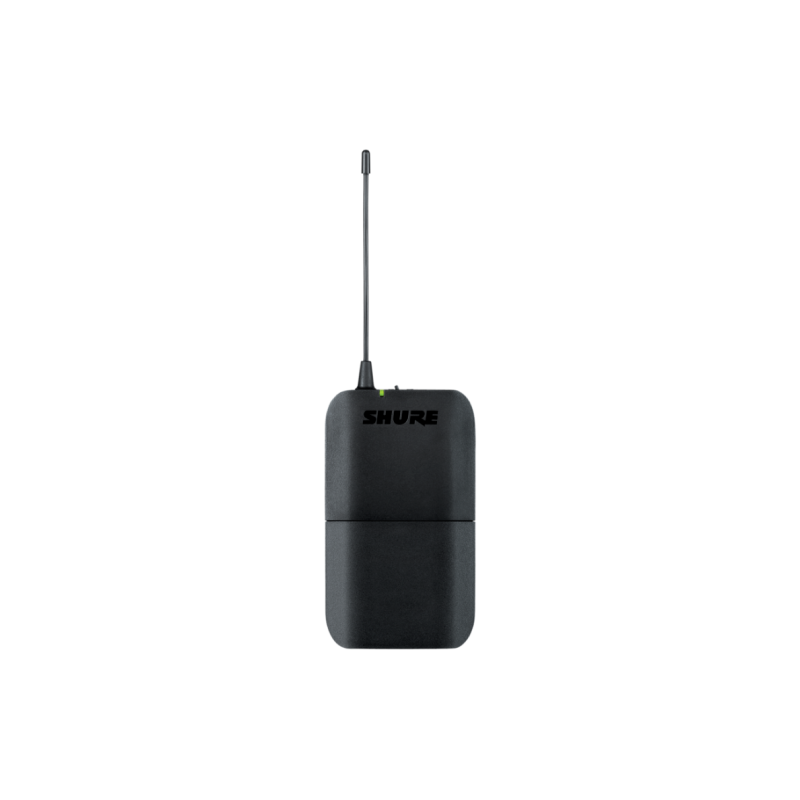

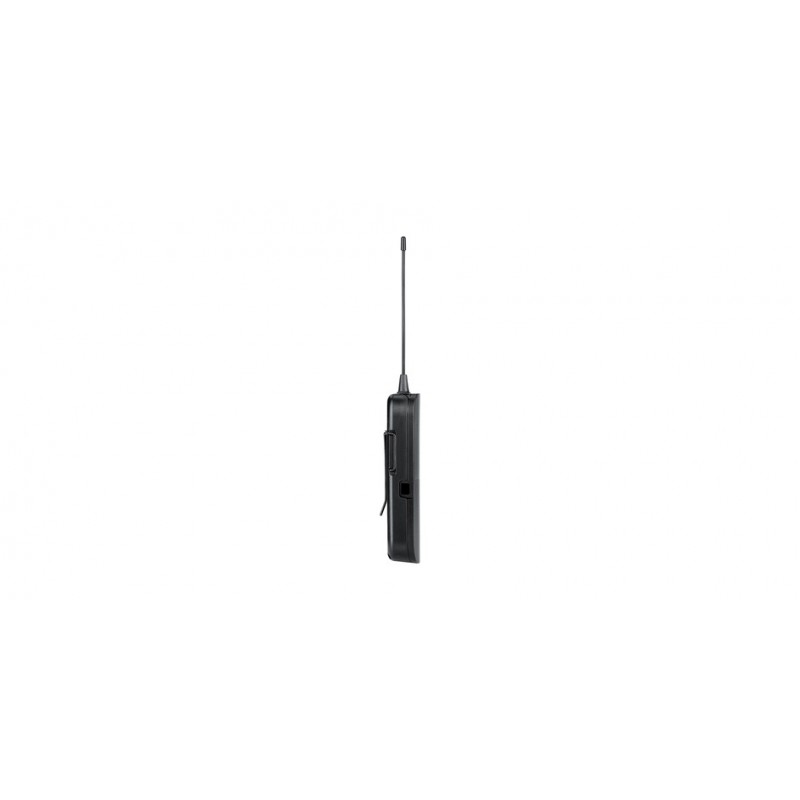

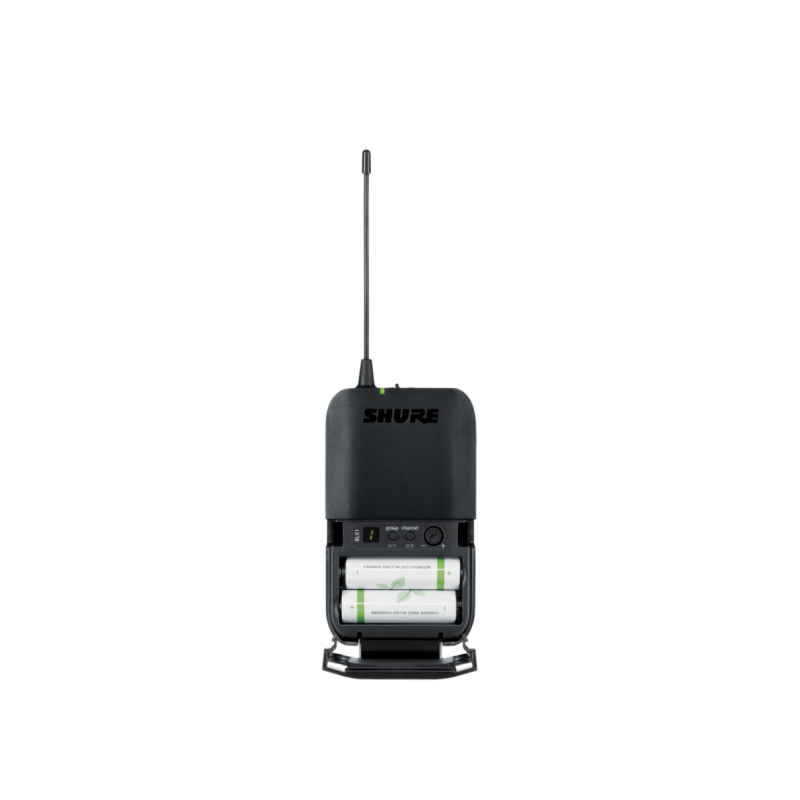

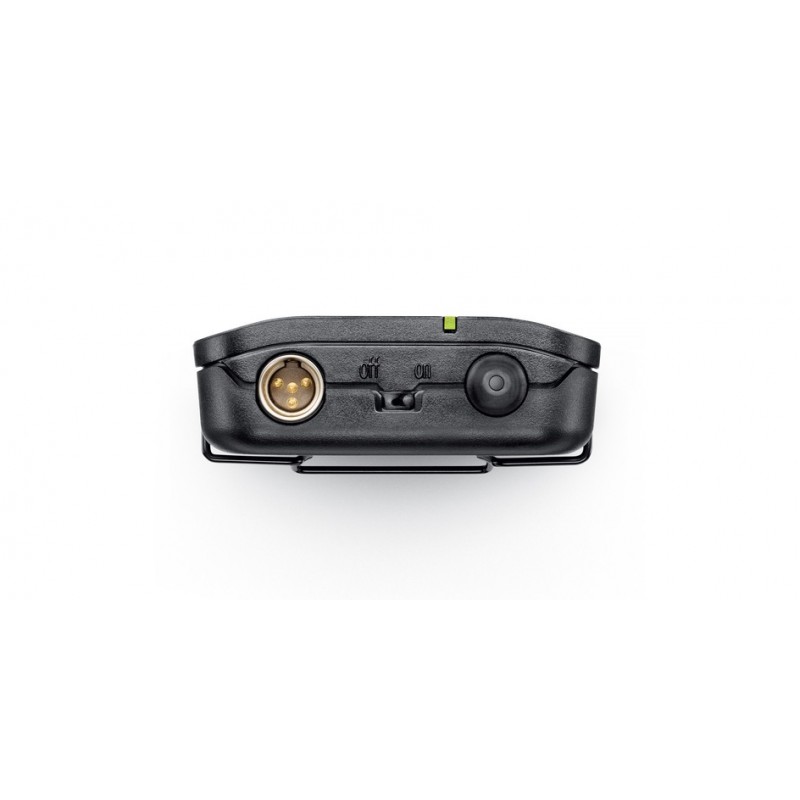

BLX1 - Wireless Transmitter

• Power and battery status LED
• Adjustable gain control
• Quick & easy frequency matching
• 2 AA batteries (included) provide up to 14 hours of continuous use
• 300 feet (91 m) operating range (line of sight)

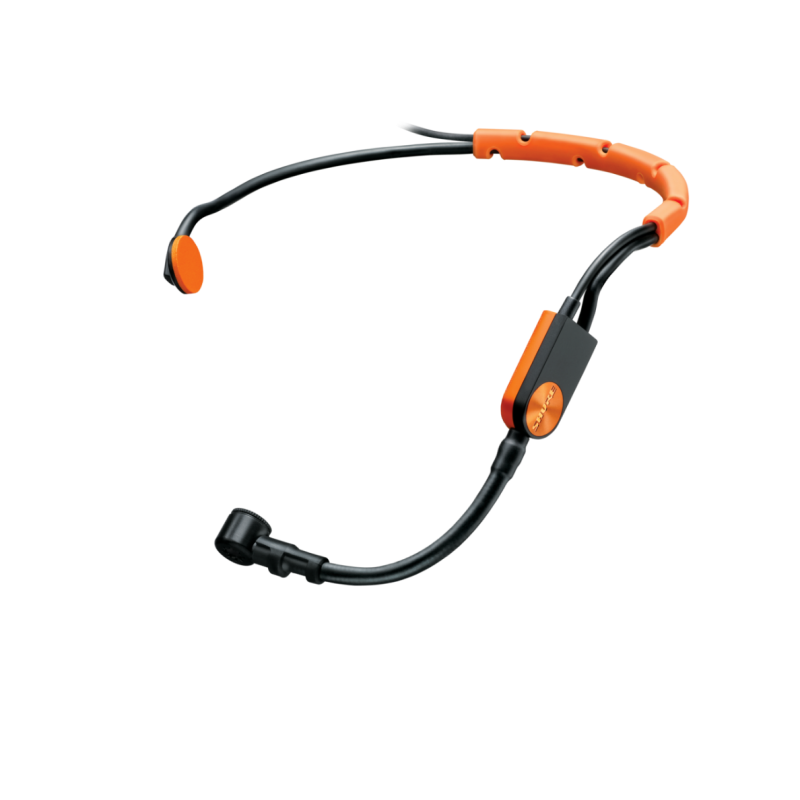

SM31FH CARDIOID | CONDENSER - Headset

• Rugged, comfortable head-worn microphone with increased moistureresistance for active speech and fitness applications
• Wearable wireframe headset with secure, comfortable fit made for fitness and aerobics instructors
• Integrated moisture-repelling hydrophobic fabric protects the microphone element from harmful corrosion for use in humid environments
• Flexible gooseneck provides discrete adjustment options to optimize placement for greatest isolation
• Lightweight and low-profile form factors stave off fatigue during high-impact use
• Compatible with Shure wireless bodypack systems for direct replacement of TA4F-connected microphones
• Available with a wide range of Shure wireless systems, renowned for ease of use and reliable performance
• Included windscreen tames plosive, breath and wind noises for clean and intelligible sound
• Tailored frequency response refined for crisp and clear vocal reproduction
• Legendary Shure precision engineering for durability and performance

Specifications

• Operating Range: 300 ft (91 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
• Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)
• Audio Range: 50–15,000 Hz (dependent on microphone type)
• Transmitter RF Output Power: 10 mW, typical (varies by region)
• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
• Maximum Output Level:-27 dBV (XLR, mic level), -13 dBV (1/4")
• Battery Life: Up to 14 hours
• Dynamic Range: 100 dB A-weighted
• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)
• Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries
• BLX4: 12–18 V DC at 150 mA, supplied by external power supply
