BXD630/10 Usb 3.2 Gen1 Repeater Procab (10m)

Description

BXD630/10 Procab Usb 3.2 Gen1 Repeater - 10 meters - Extension for Usb Cable

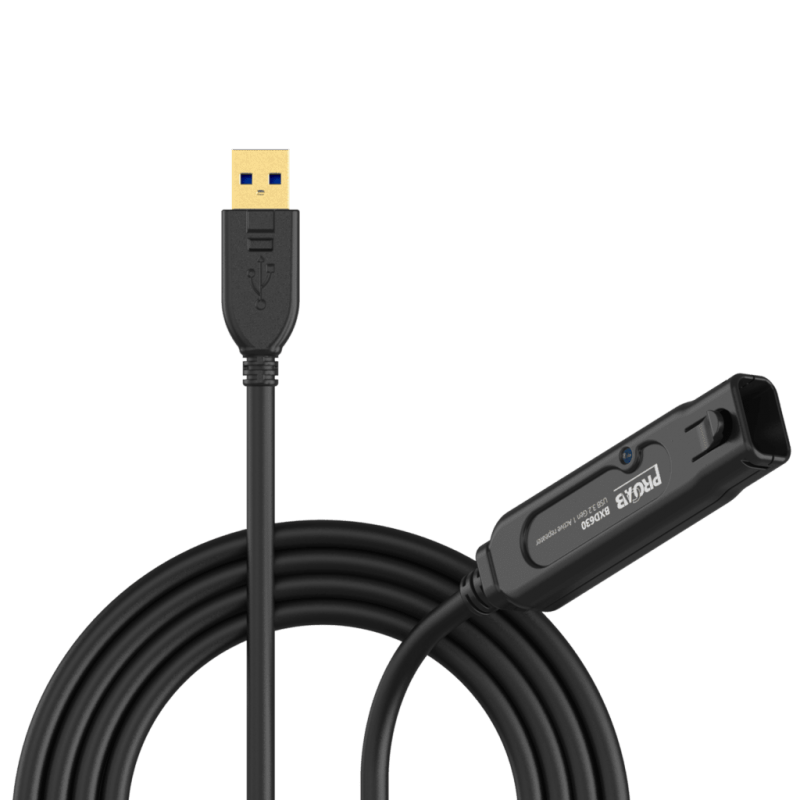

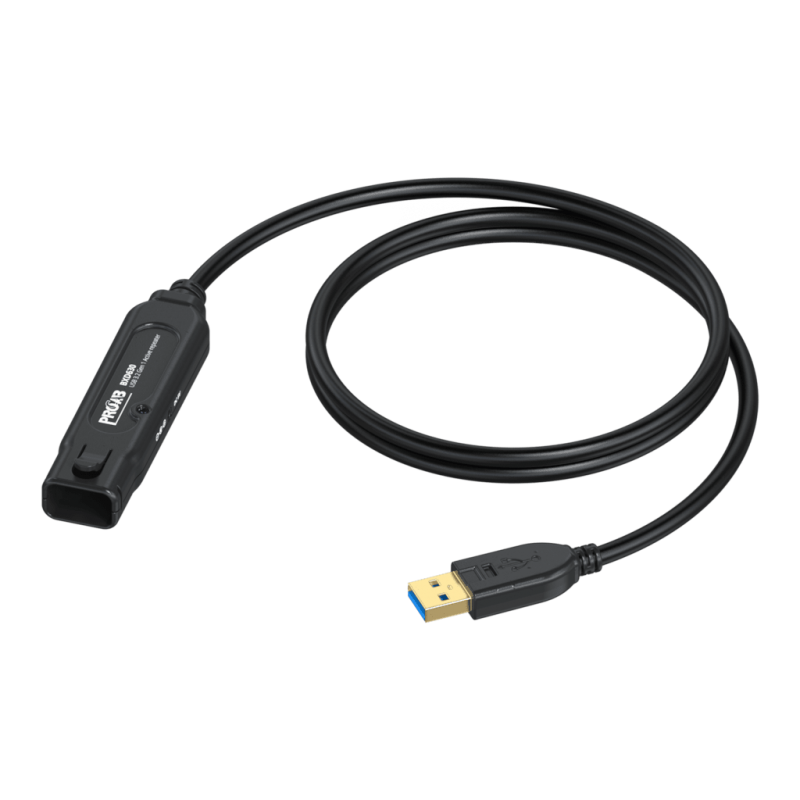

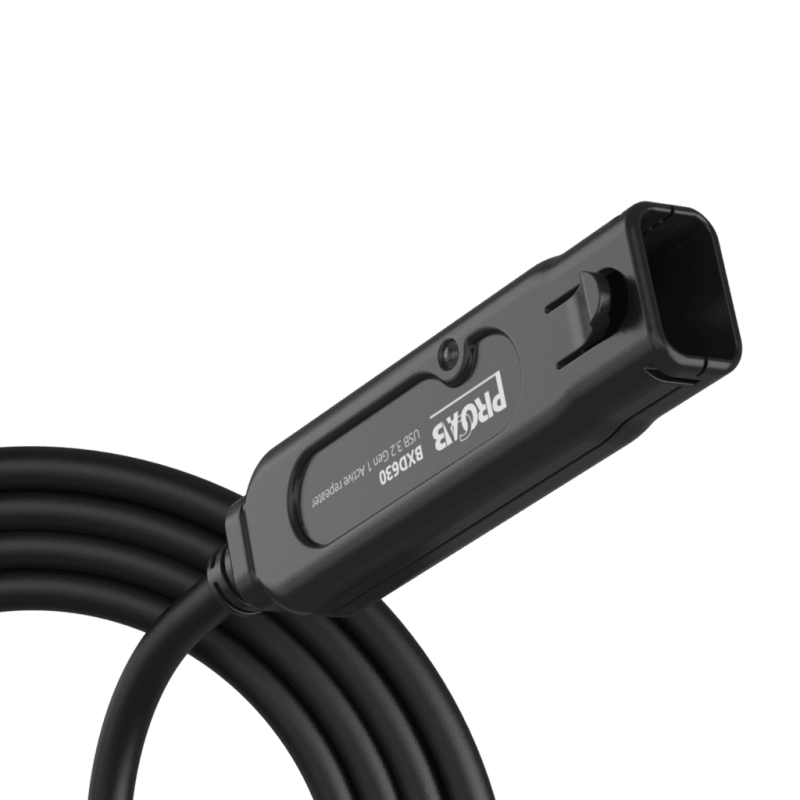

The BXD630 is an active USB 3.2 Gen 1 extender cable, which allows extension between a USB host and devices up to 10 meters away and with bit rates up to 5 Gbps. The cable is made of high quality materials with high purity oxygen-free copper and flexible PVC. One end features a male USB Type A connector, while the other features an active extender with a lockable female USB Type A connector. Both ends feature a unique locking mechanical design that securely connects the male and female ends. The fixed length is 10 meters and up to 5 extension cables can be linked together, providing a maximum distance of 50 meters.

When using a single BXD630, there is no need to use an external power adapter. When looping two BXD630s, an (optional) power adapter must be connected to the last cable in the chain (device side). When daisy-chaining more than two (maximum 5) BXD630s, an (optional) power supply must be connected to the first (host side) and the last (device side) cable in the chain.

Multi-platform support (Windows & Mac) and bus-powered construction (up to 3 A or max. 15 W) guarantee true plug & play operation.

Features

• Supports USB 3.2 Gen 1 - 5 Gbps data rate
• Backwards compatible with USB 2.0/1.1
• USB bus power (self power) up to 3A (max 15W)
• Optional external power adapter possible for high power devices
• Daisy chain connection possible (up to 50m)
• Overcurrent detection and protection
