Compact Par 7/15 Q4 RGBW Showtec

Description

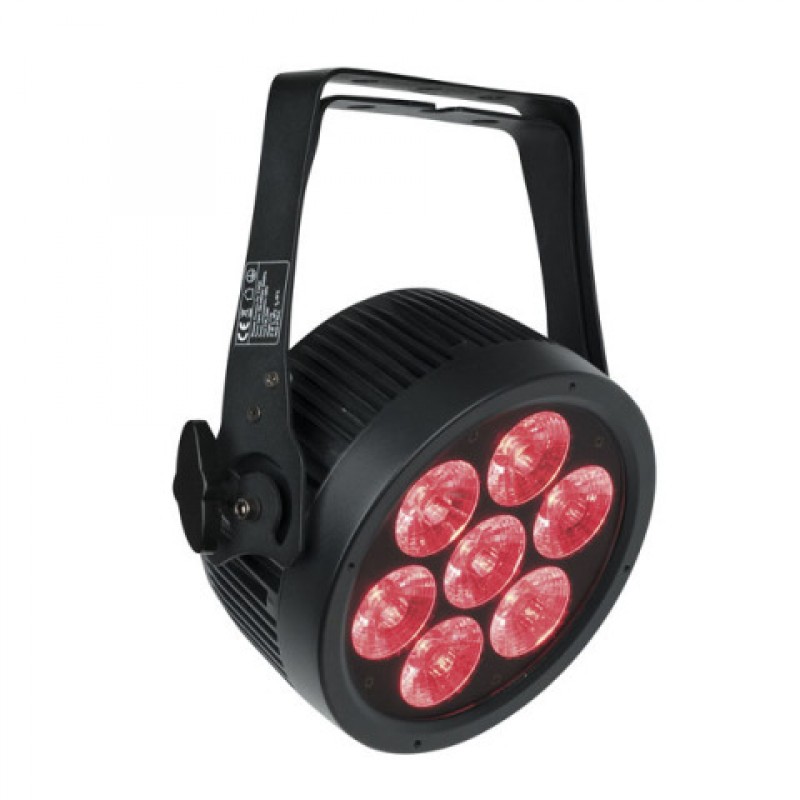

Showtec Compact Par 7/15 Q4 RGBW

The Compact Par 7/15 Q4 is a compact but powerful parcan which is equipped with 7x 15W RGBW LED's. Due to efficient and optimized 50mm lenses the Compact Par 7/15 Q4 offers a bright beam with vivid colors and excellent color mixing. It is equipped with a wide range of connections ensuring that it will fit in any gig or tour. 3 and 5 pole XLR are set as standard and power connections are by ProPower Blue and ProPower White connectors. A clear and intuitive OLED display ensures easy operations and fast setup of your fixture.

Features

• 7 x 15W RGBW LED

• 15 degree optics

• OLED display for easy navigation

• Full connectivity

Specifications

Light Source

• LED System: 7 x 15W RGBW LEDs

• Refreshrate: 1K Hz

• Driver curent: 350mA/color

• Output@2m: 8950lux

Electrical

• Power Supply: 100~240VAC, 50/60 Hz

• Power Consumption: 160W

Control

• Control Mode: Auto/ built-in programs, manual, DMX

• DMX channels: 4, 6, 10ch

Optical system

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Beam Angle: 15°

Physical

• Dimensions: 290 x 260 x 105 mm (incl brackets)

• Weight: 7,4 Kg

• Housing: Di-cast powder coated Aluminium

• Color: Black

• Power Connections: ProPower Blue and ProPower White

• Data Connections: XLR 3 pole and XLR 5 Pole

• Cooling: Convection

Safety

• Certification: CE

• Operation temperature: -10~40°C

• IP-Rating: IP-20
