GPR412/B CAYMON

Description

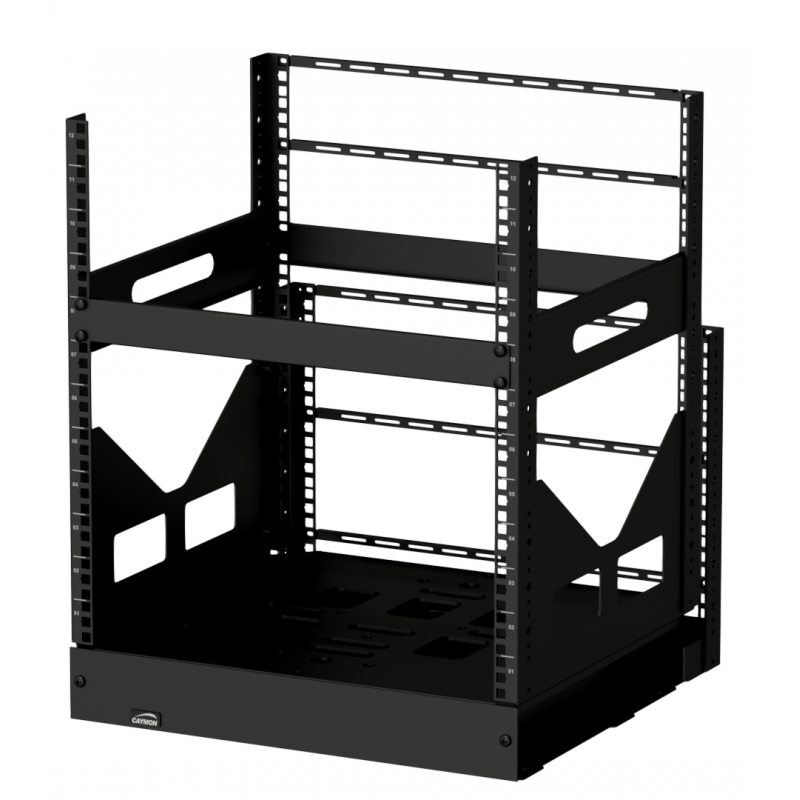

GPR412/B Slide out rack

The GPR412 is a professional and solid constructed slide-out rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a flush mount solution for installation up to 12 units of equipment. The HexaSlide™ extending equipment bay combined with cable management rear supports allows rack integration into walls or fur- niture, while keeping the rear side of the equipment accessible for main- tenance and servicing. Position locking in extended position with rotation angles for 45° and 90° allows easy fitting for the equipment, while locking in retracted position offers optimal security and stability for permanent in- stallation. The construction is made of 3.0 mm thick steel profiles and fin- ished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators.

Highlights

• In-wall / furniture integration for 19” equipment
• Extending equipment bay
• Locks in extended position for simplified installation
• Rear support for cable management
• Max load up to 60 Kg
