ICOA 12A LD SYSTEMS

Description

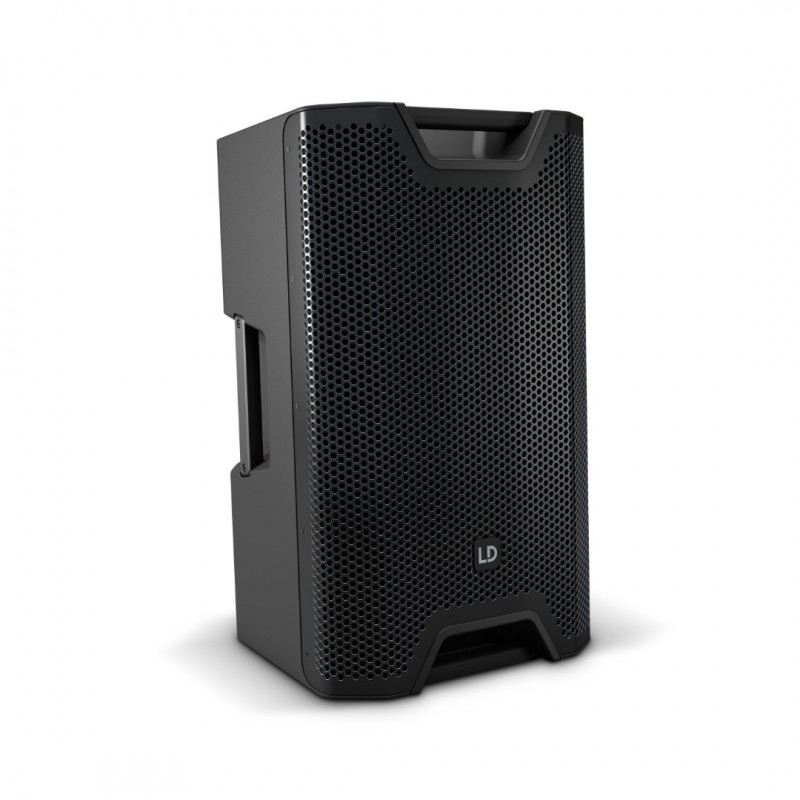

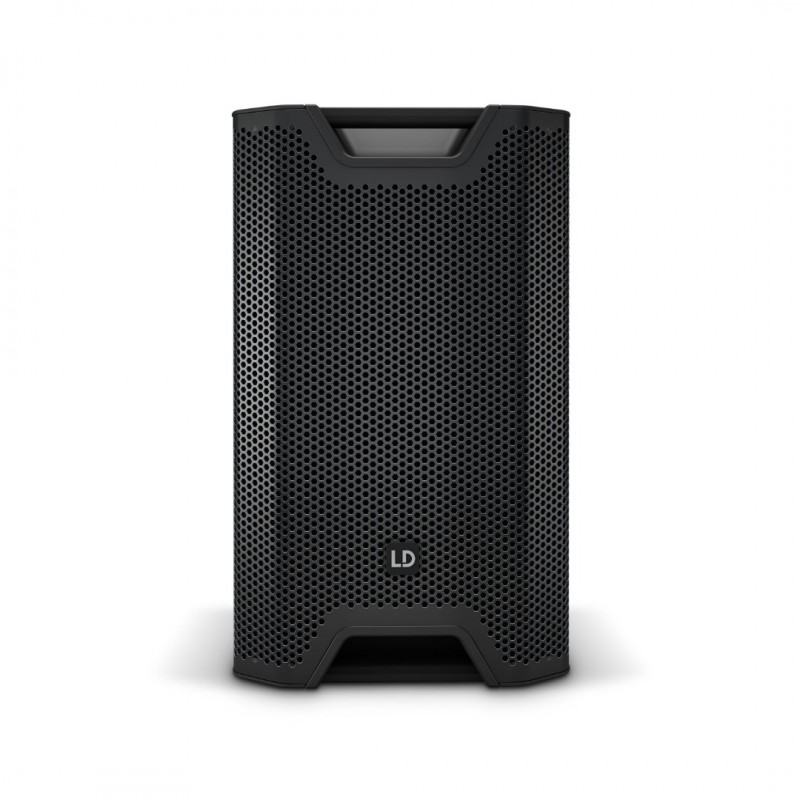

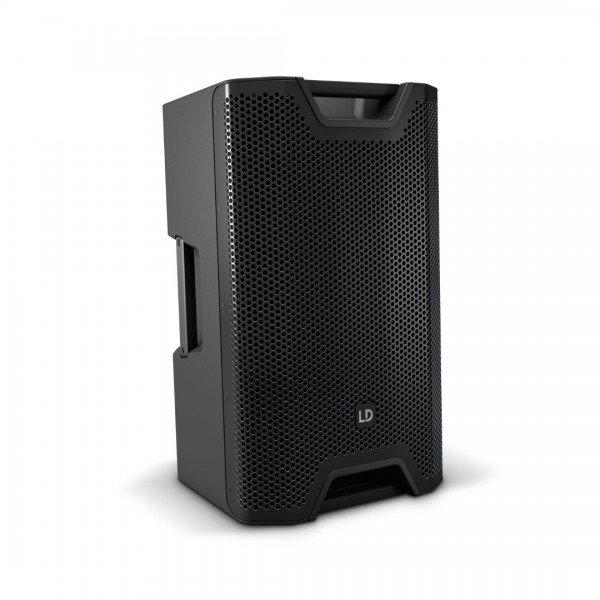

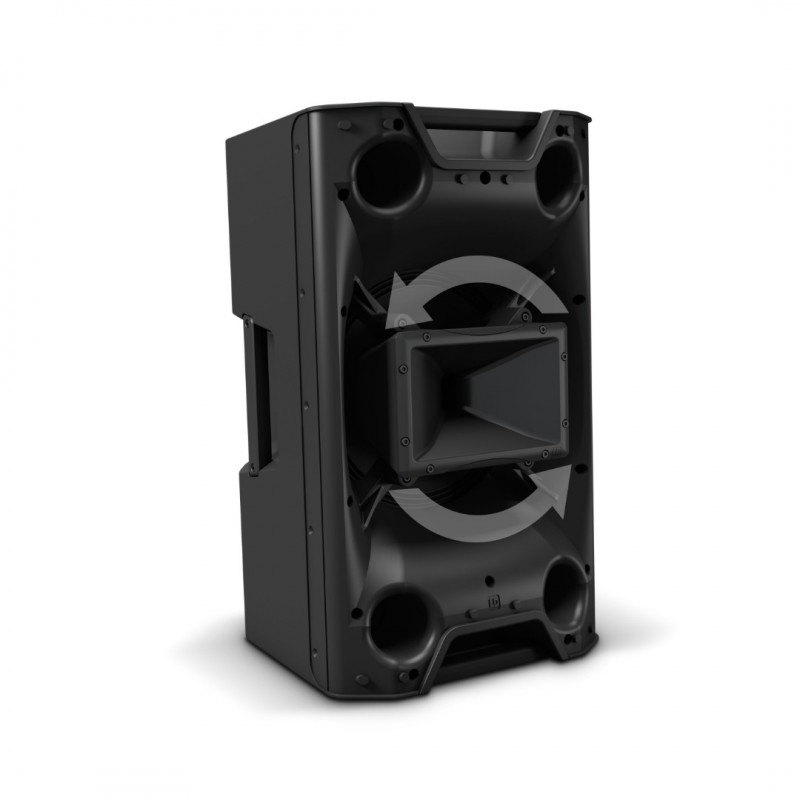

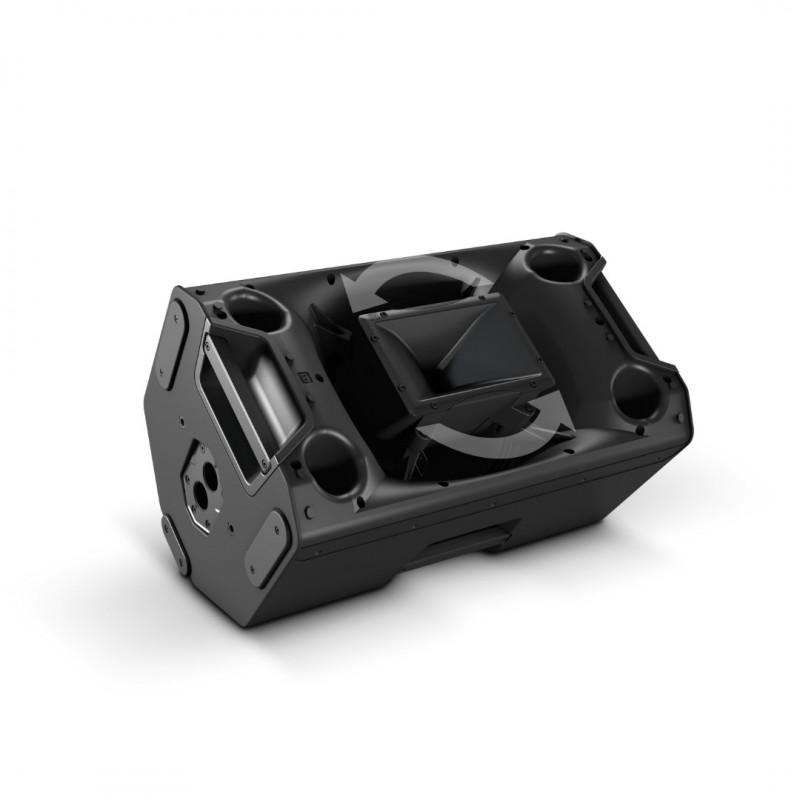

This full-range speaker impresses with its excellent sound, even at low frequencies. The ICOA 12 A by LD Systems is a true all-rounder offering unrivalled performance for its class. The coaxial design, rotary, BEM-optimised horn and comprehensive and precisely calibrated DynX DSP presets make this powerful 12-inch speaker exceptionally flexible for a wide range of applications.

The excellent bass reproduction of the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. The efficient class-D power amplifier delivers up to 126 dB. SPL and 1200 W peak performance.

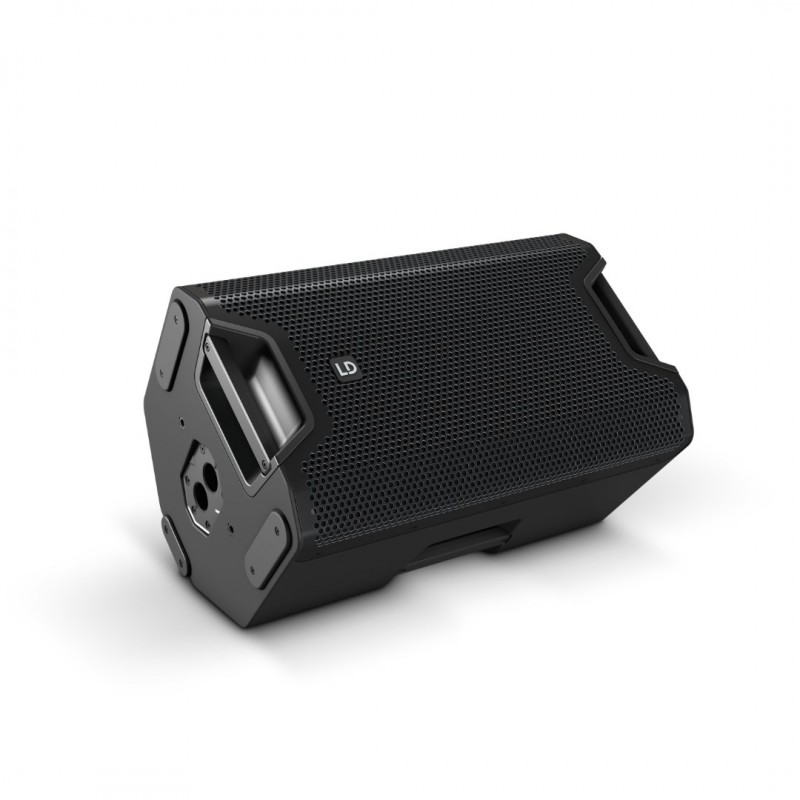

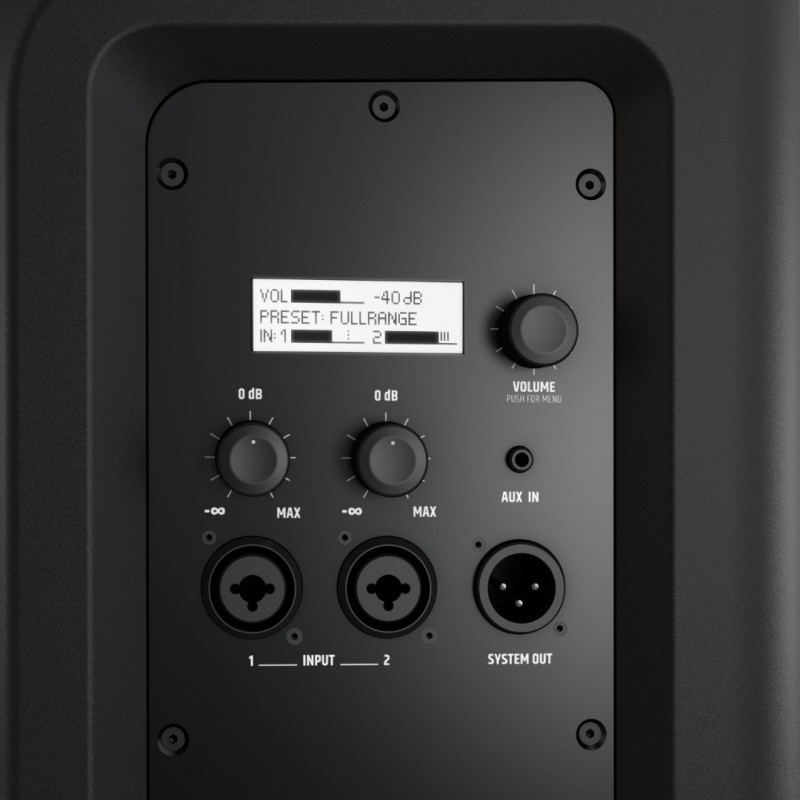

Based on LD Systems' DynX DSP technology, the loudspeaker delivers perfect performance with maximum clarity and power in all conditions. 4 presets, a 3-band EQ and a delay function allow the sound to be optimally adjusted to conditions. The 2 line/mic input channels with individual volume controls, plus a mono-mix output, make it possible to connect a variety of signal sources. Thanks to the shock-resistant diffuser face and the ideal tilt angle of 55°, the LD ICOA 12 A is also ideally suited as a floor monitor.

Specifications:

• Low/mid woofer size: 12"
• Woofer magnet Ferrite
• Hoorn BEM optimized CD Hoorn
• HF driver dimensions 1 "
• HF magnet Ferrite
• Amplifier class D
• Dispersion (H x V) 90 ° x 50 °
• RMS 300 W
• Peak power 1200 W
• Frequency range 50 - 20000 Hz
• Crossover frequency kHz 2 kHz
• Max. SPL (peak) 126 dB
• Thermal overload protection
• LC display

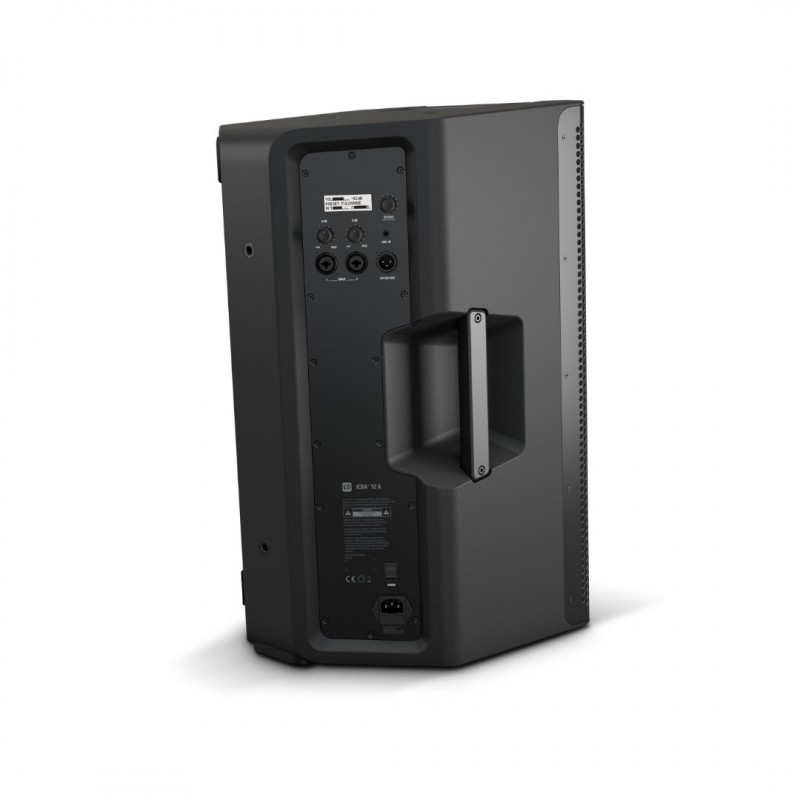

• Mic/line inputs 2
• Mic-/ Line Input Connectors 6,3 mm jack Combi, XLR
• Line inputs 1
• Line input connectors 3.5 mm TRS
• Line outputs 1
• Line output terminals XLR
• Power consumption (power supply) 150 W
• Operating voltage 100 V - 240 V AC / 50 - 60 Hz
• Cabinet material: Polypropylene
• Cabinet construction: Bass Reflex

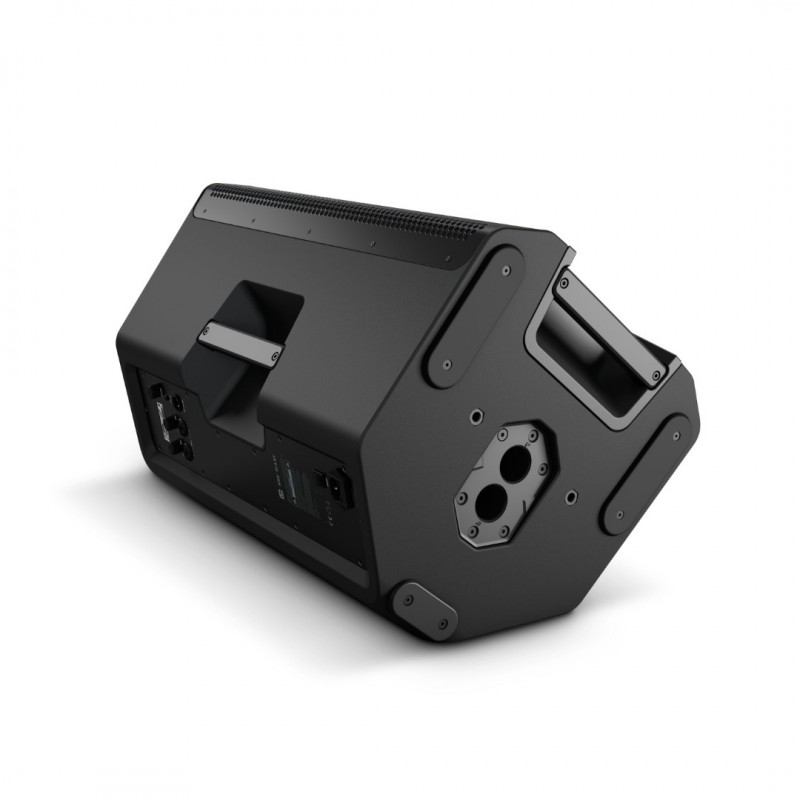

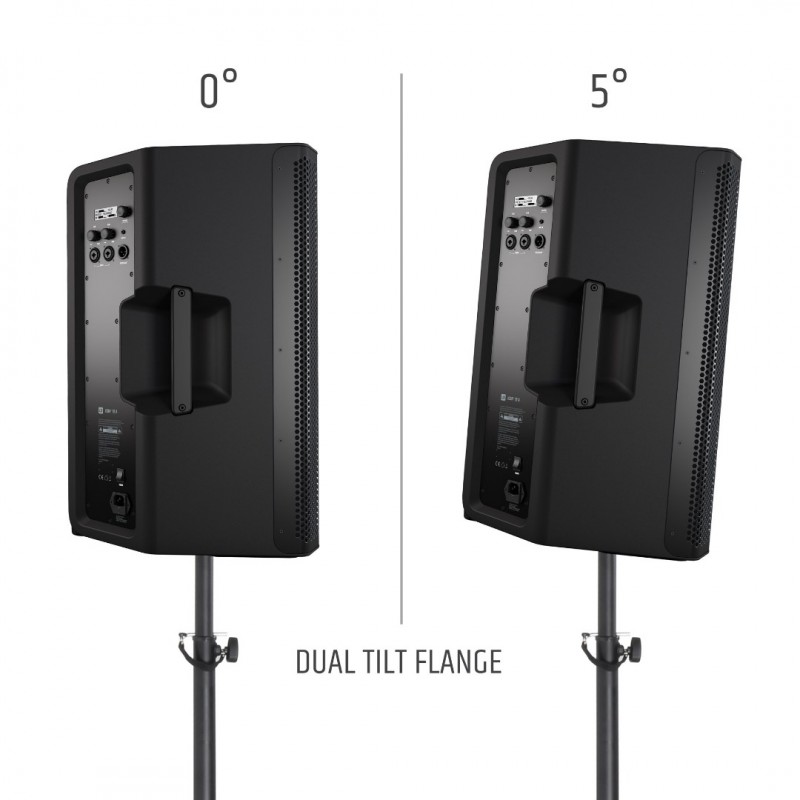

• Mounting 36mm flange (0°, 5°) , 6 x M10 flight points
• Dispersion angle 55°
• Width 375 mm
• Height 635 mm
• Depth 396 mm
• Weight 19,95 kg
