MEI100 G2 LD SYSTEMS

Description

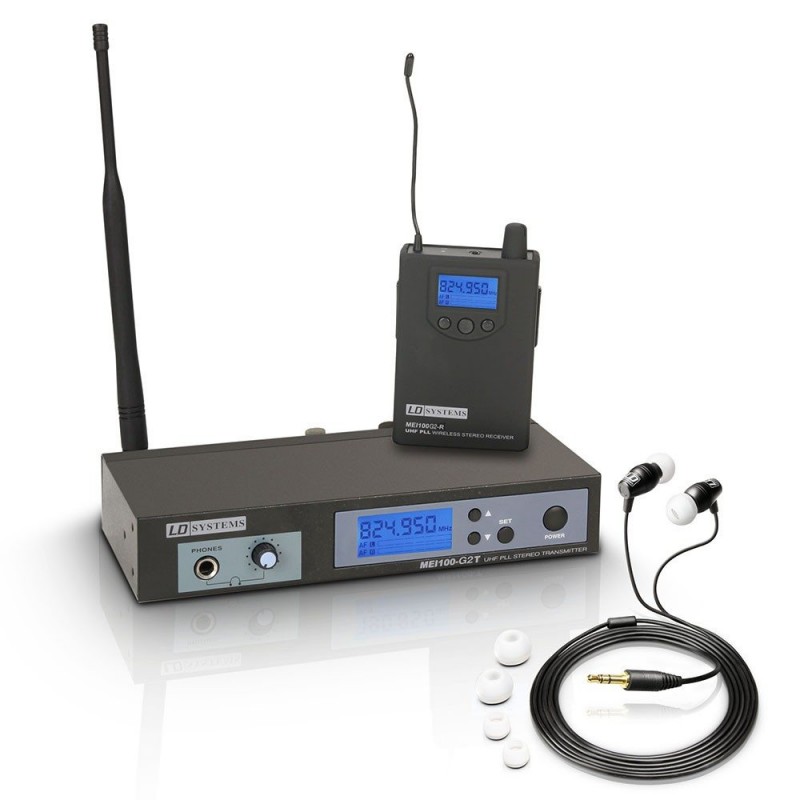

MEI100 G2 LD SYSTEMS - Wireless IN-EAR MONITORING SYSTEM

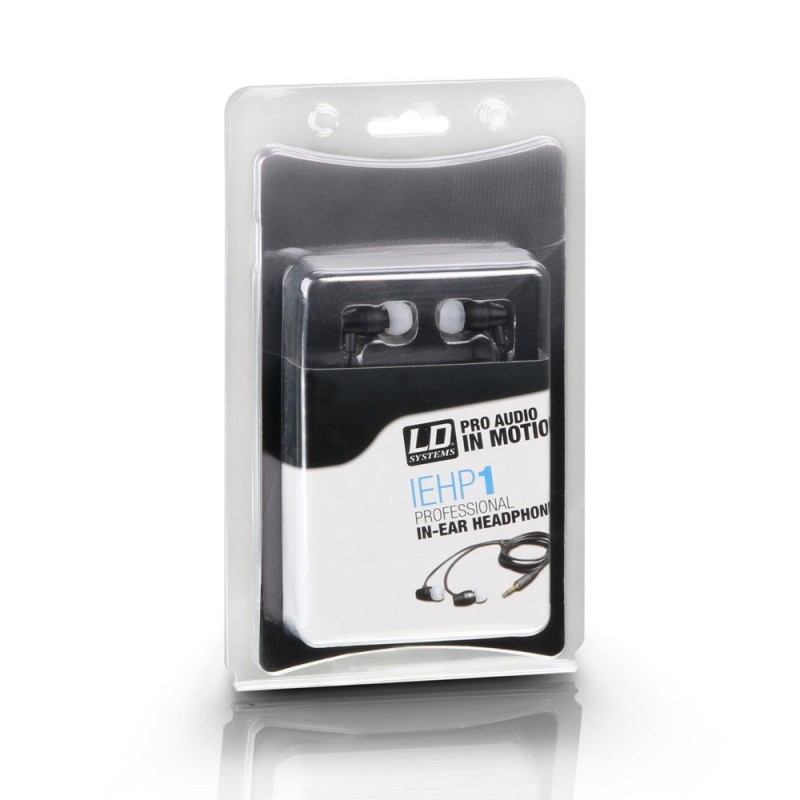

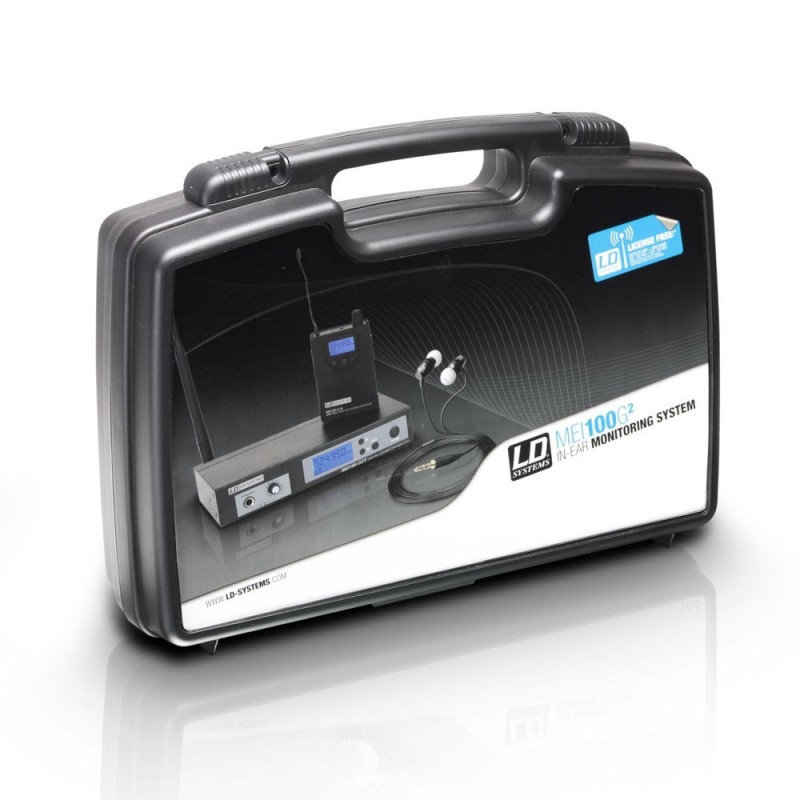

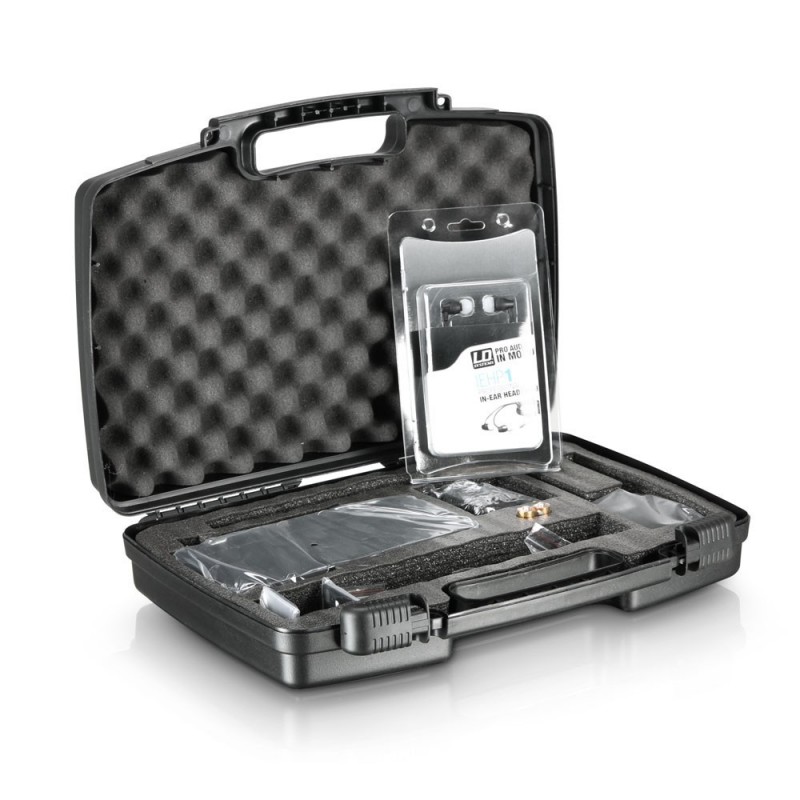

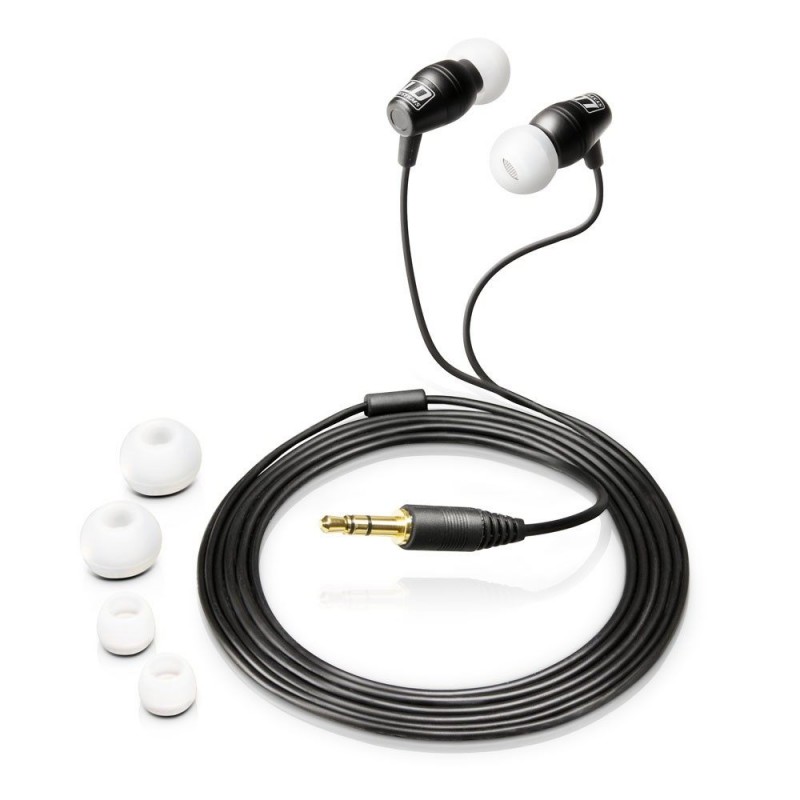

The new LD system MEI 100 G2 In-Ear Monitoring System with 96 UHF channels offers excellent sound quality and a wide dynamic range in the 823 - 832 and 863 - 865 MHz bands. The system switches between mono and stereo mode for perfect monitoring of live musicians, actors or speakers. A built-in limiter ensures even, distortion-free sound reproduction with a frequency response of 80 Hz - 15 kHz and stands out for its high signal-to-noise ratio and low overall harmonic distortion. The LD MEI 100 G2 enables simultaneous operation of up to 5 systems. Both the transmitter and receiver are equipped with multi-function displays that display all important system information. With high quality batteries it is possible to achieve running times of 10 hours and more. The MEI 100 G2 package includes high-quality earphones, a 19" rackmount kit and a robust transport box made of ABS plastic. * Licence free: ISM band licence free in Europe, please check the duplex hole for your specific country.

Specifications:

• Transmission frequency range 823 - 832 MHz , 863 - 865 MHz

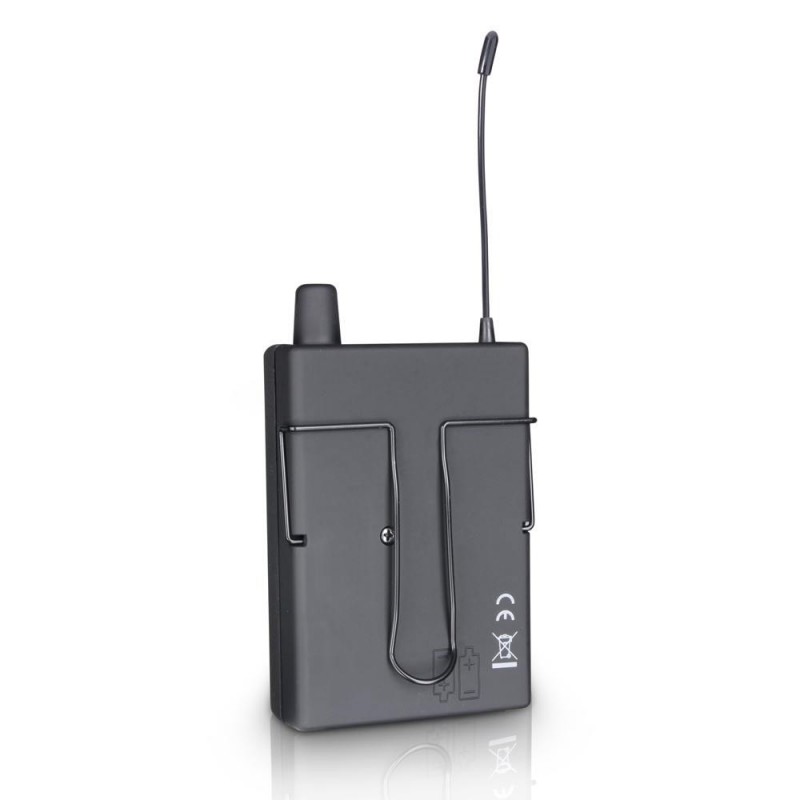

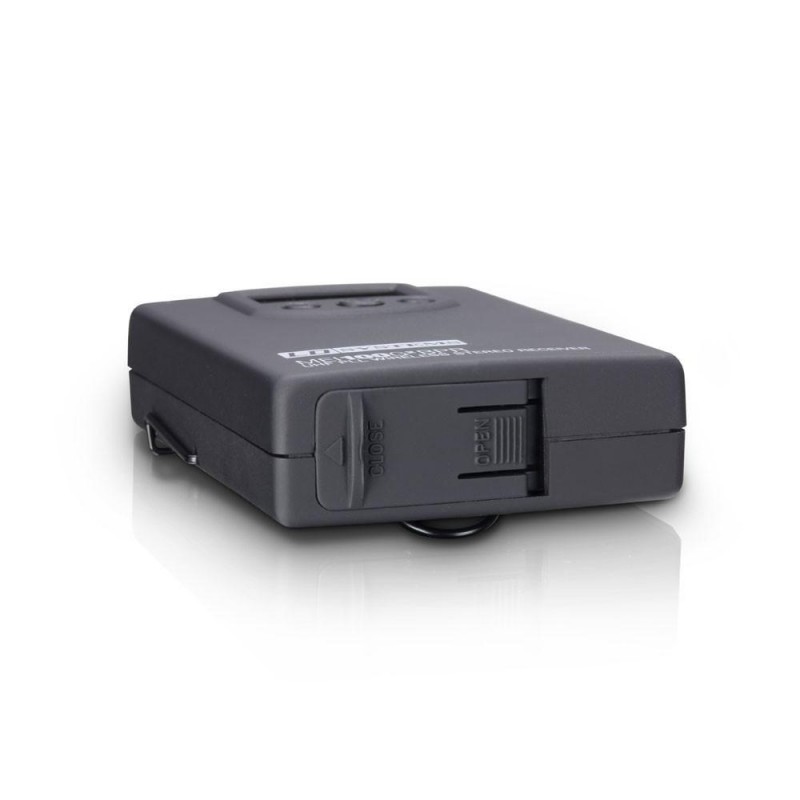

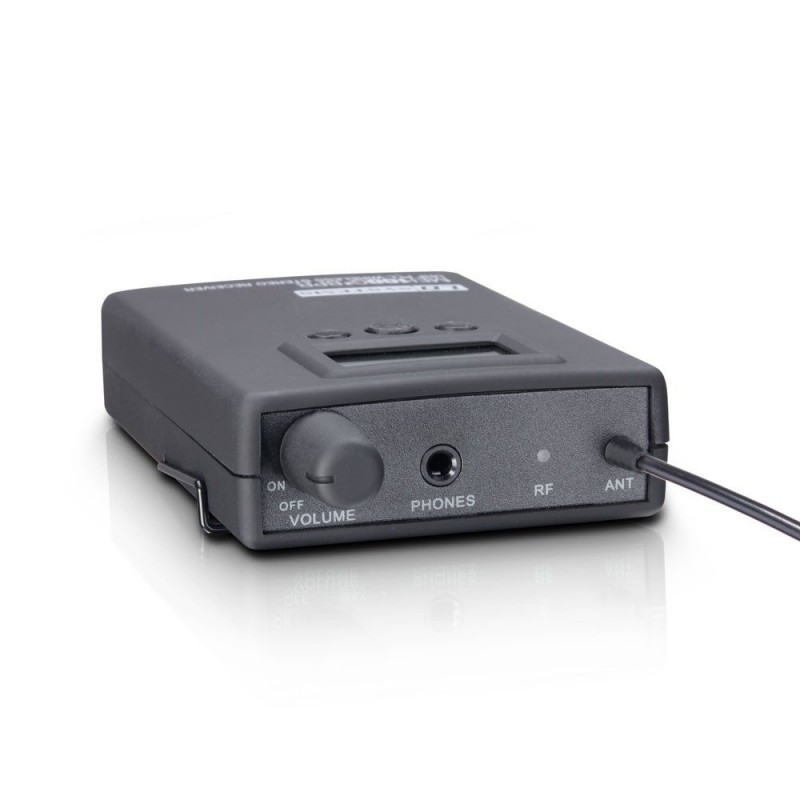

• LDMEI100G2BPR - LD Systems MEI 100 G2 Receiver for LDMEI100G2 In-Ear Monitoring System
• Product type In-ear monitoring accessories
• Type Receivers
• Channels 96 (8 groups of 12 channels)
• Transmission method FM, stereo
• Frequency response 80 - 15000 Hz
• Total harmonic distortion (THD) 0.25%.
• Audio output 3.5 mm TRS
• Max. audio output level 100 mW
• Indicators RF (LED)
• Operating time > 10 hours
• Controls volume
• Operating voltage 2 x 1.5 V AA
• Properties incl. batteries
• Width 65 mm
• Height 95 mm
• Depth 25 mm
• Weight 0.1 kg
• LDMEI100G2T - LD Systems MEI 100 G2 Transmitter for LDMEI100G2 In-Ear Monitoring System
• Type of Transmitters
• Mono/stereo modes of operation
• Rated HF output power 10 mW
• Inputs 2
• Input terminals XLR
• Input impedance (kOhm) 8.5 kOhm
• Antenna connector BNC
• Adjusts headphone volume
• Operating voltage 12 - 18 V DC
• Width 212 mm
• Height 38 mm
• Depth 90 mm
• Weight 1.1 kg
• Accessories (included) Power supply
