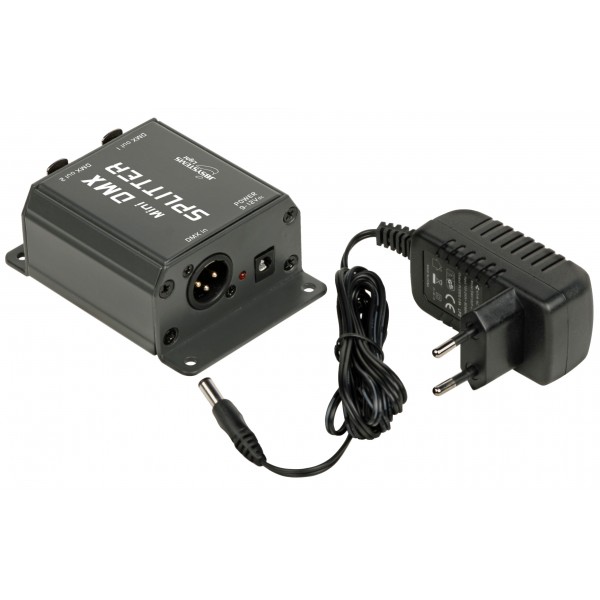

MINI DMX SPLITTER JB SYSTEMS

Product information

• The perfect solution for many DMX-line problems: this mini DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other, problems on 1 line will not influence the other line!
• Booster function makes your DMX-installation more reliable and flexible to set up.
• Can also be used to set up the unique “DMX Master/slave" system.
• Small size: can be added / hidden anywhere!
• 1 DMX-input + 2 DMX-outputs, each equipped with 3pin XLR-connectors.
• Small 9V DC-power adapter included

• AC/DC Power adapter: AC 100-240V 50/60Hz à 9Vdc / 0,8A
• DMX in/outputs: 3pin XLR
• DMX-Isolation: protection against faulty DMX-signals on in/out, no overvoltage protection
• Size: 102 x 72 x 39,4 mm
• Weight: 0.24 kg (including power adapter)
