PD-63A Mk2 GER-NL BRITEQ

Description

PD-63A Mk2 / GER-NL

Description

• This 3-phase power distributor is designed to improve safety in both mobile, rental and fixed installations.

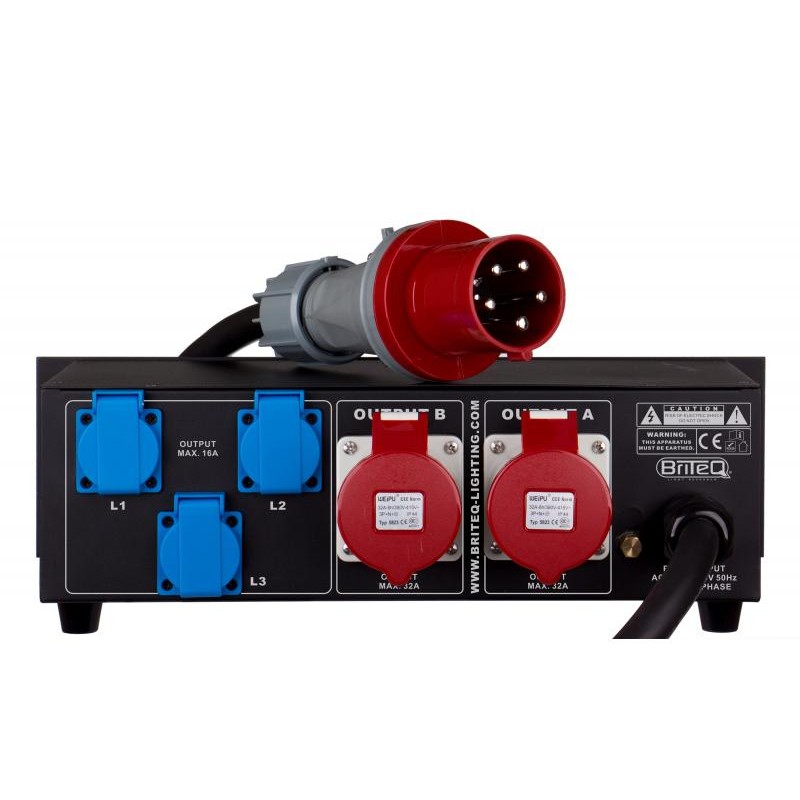

• Connections output:

  • 2x CEE (3P+N+E) 32A outlet sockets (3x 32A, 5wire)

  • C32 (32A - 3P+N) 4-POLE automatic circuit breaker per 32A output

  • 3x earthed 16A mains outlet sockets (1 socket per phase)

  • C16 (16A - 1P+N) 2-POLE automatic circuit breakers per 16A socket

• Connections input:

  • 1,5m long mains input cable (3x 63A, 5wire), equipped with CEE (3P+N+E) 63A inlet plug

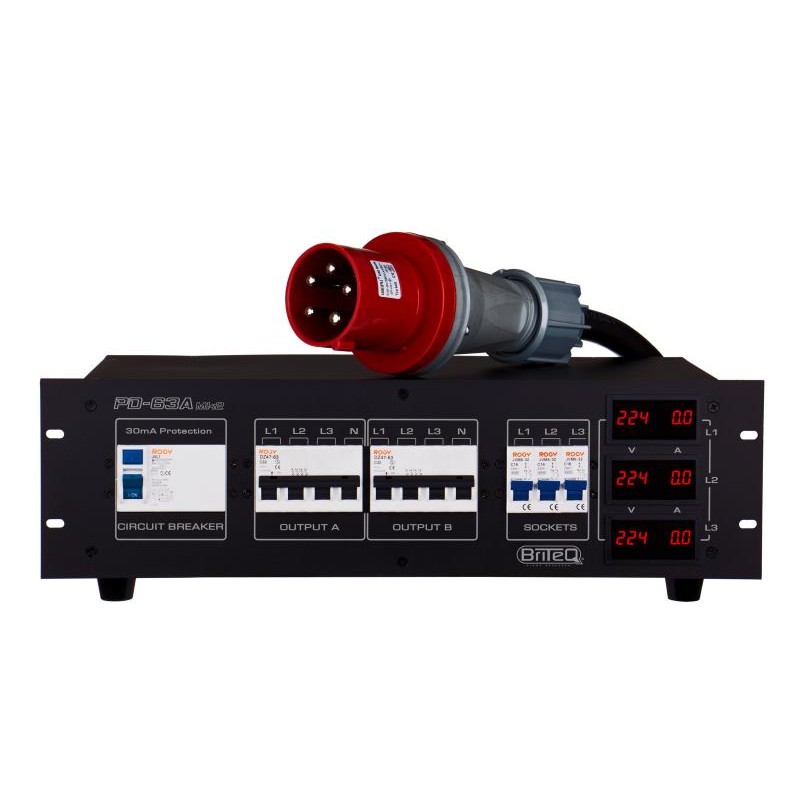

• A 3P+Nole, 30mA residual current circuit breaker protects users against electrical shocks.

• Accurate digital 3-digit voltmeters per phase

• Accurate digital 3-digit ampere meters per phase

• Designed and build to the highest European and international safety standards.

• Oversized internal wiring for increased reliability!

• Extremely robust 19"/3U metal housing

• German 16A blue schukos (CEE 7/4)

Technical Information

• Power Input:  IEC60309-standard, CEE-63A industrial plug. 380V–400V / 50Hz, 3phase, 5wire (3P+N+E)

• Maximum overall power:  44.160Watt (3x 63A)

• Maximum power per phase:  14.490Watt (63A)

• Maximum power per 32A-output:  22.080Watt (3x 32A)

• Maximum power per 16A-output:  3.680Watt (16A)

• Protection class:  class I (only to be connected to class I outlets)

• Max. Leakage current:  30mA

• Automatic fuses / phase 16A:  2x C16 (In=16A, instantaneous tripping current = 5x In)

• Automatic fuses / phase 32A:  2x C32 (In=32A, instantaneous tripping current = 5x In)

• Diameter Power cord:   5x 10mm² (H07RN-F 5G10)

• Diameter internal wiring:

  • 63A-wires: 6AWG (13,3mm²)

  • 32A-wires: 10AWG (5,2mm²)

• Size:   19"/3U (274 mm deep)

• Weight:  9,7 kg
