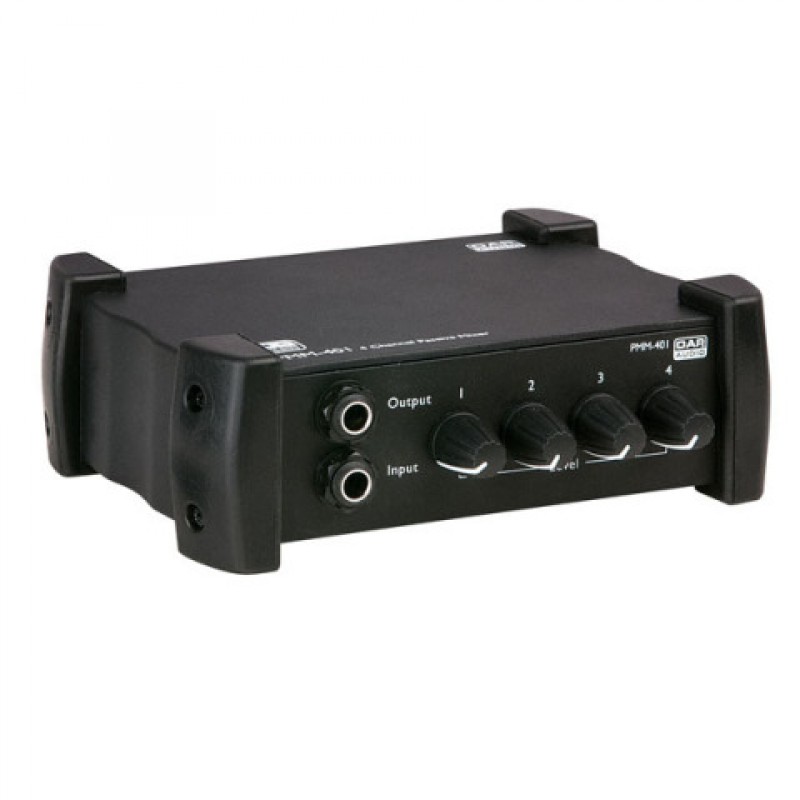

PMM-401 DAP AUDIO 4-KANAALS PASSIEVE MIXER

  • S2 ref: D1531
  • 79.26
  • 65.50

    Incl. VAT
  • Approx. 3-7 working days

* Mandatory fields

  Add to Wish List   Compare this Product

Description

The PMM-401 is a four channel passive mixer for expanding a mixer with extra line signals. It requires no batteries or other power source. The unit can be used as a 1-in 4-out box then all controls are turned completely clockwise. It is a use full tool that will help you at unforeseen situations.

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

FEATURES:

  • No power-supply needed
  • Stereo in- and outputs
  • 4-in, 1 out mixer
  • 1-in, 4 out splitter

SPECIFICATIONS:

  • Frequency Response: 20Hz-20KHz
  • Inputs: 6,3 TRS Jack,
  • Outputs: 6,3 TRS Jack
  • Input Impedance: 1Meg
  • Input Impedance: 50 kOhm
  • Output Impedance: 12 KOhm
  • Dimensions: 53 x 158 x 135 mm (HxWxD)
  • Weight: 0,67 Kg

DOWNLOADS:

Manuals

Product documents
