SPR618 CAYMON

Description

SPR618

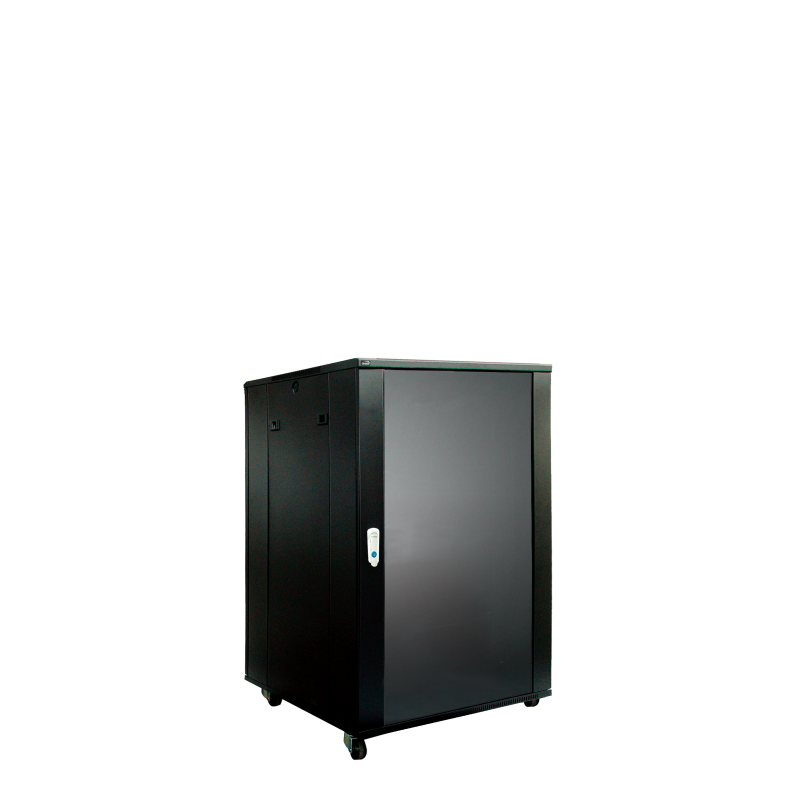

19" Rack Cabinet - 18 Units

The SPR618 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 18 units inside. The SPR618 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

Product highlights

• 50 mm Wheels + leveling feet included

• Front and rear 19” profiles adjustable in depth

• Integrated ventilation grid on top

• Punched square holes for use with snap-in cage nuts

• Removable sides for easy installing & cabling

• Standard keylock for both doors

• Stores up to 18 units of 19” Equipment

• Tempered smoked glass front & rear steel door

Specifications

• Max Load : 800 kg

• Unit height : 18 HE

• Width : 600 mm

• Depth : 600 mm

• Max usable depth : 540 mm

• Height : 918 mm

• Height with wheels : 988 mm

• Weight : 52 kg

• Rack color : Black (RAL 9004)

• Wheel diameter : 50 mm
