TINY FX

Description

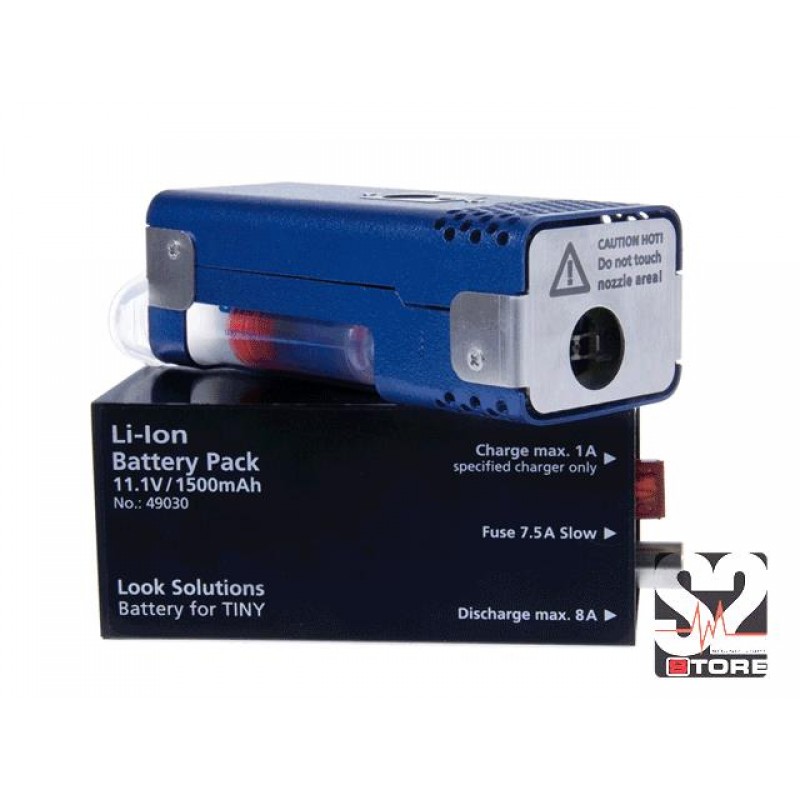

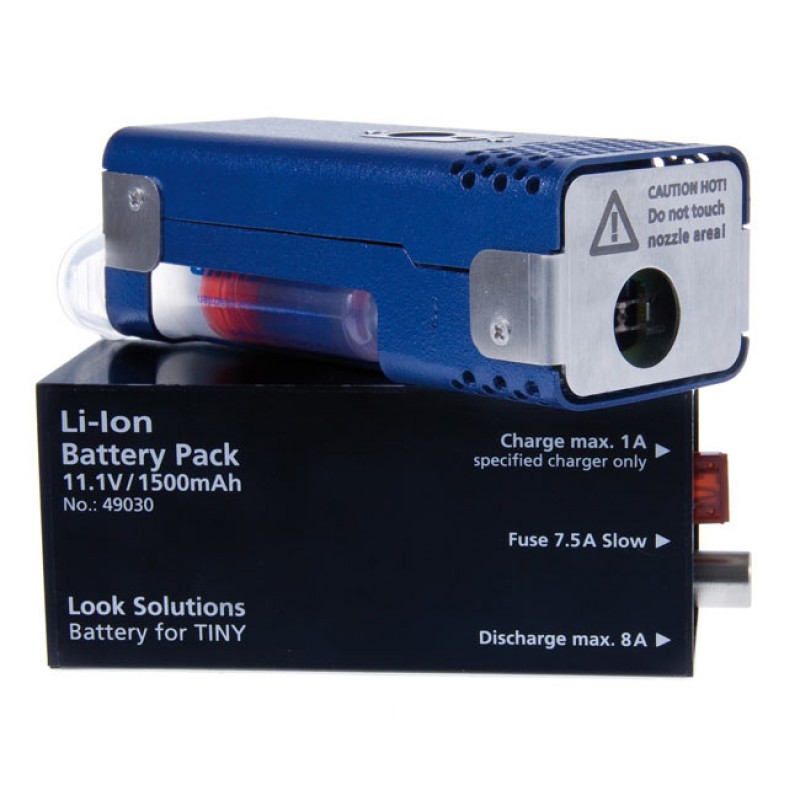

The TINY FX is the latest, modified successor of the Tiny F07. The design and also some components have been changed: Due to the installation of a smaller, efficient pump, dimensions and weight could be reduced again. The fluid reservoir can be screwed directly into the machine. Thus, an external fluid tank and fluid tube are not necessary and the TINY FX only has two components: machine and battery pack.

In the field of special effects, equipment for theatre, mega musicals and movies, individual solutions for placing fog effects are often needed. Until now many great ideas have failed due to the size, lack of flexibility and price.

ADVANTAGES:

• Very small dimensions
• Battery supplies energy only when necessary
• Warm up time less than 1 sec.
• Continuous output
• Fogging time programmable
• Minimal fluid consumption
• Trigger directly at the machine, with cable remote and optionally with radio remote, DMX converter or Timer
• Carrying case
• Manufactured in Germany

TECHNICAL INFORMATION:

• Procedure: vaporizing fog generator
• Power requirement: 70 Watt
• Voltage: 11.1 V battery
• Warm up time: < 1 Sec.
• Fluid tank capacity: 5 ml
• Fluid consumption: 2.3 ml/min. at cont. output
• Fogging time: programmable
• Continuous output with battery: 10 min.
• Control: Start button in the lid, Cable remote, Radio remote (option), DMX 512 converter (option), Timer (option)
• Temperature control: Microprocessor
• Dimensions TINY FX (LxWxH): 9.8 x 4.4 x 3.4 cm
• Weight TINY FX: 180 g
• Dimensions battery pack (LxWxH): 10.5 x 4.4 x 4.1 cm
• Weight battery: 200 g
