WIN 42 BPH B5 LD SYSTEMS

Description

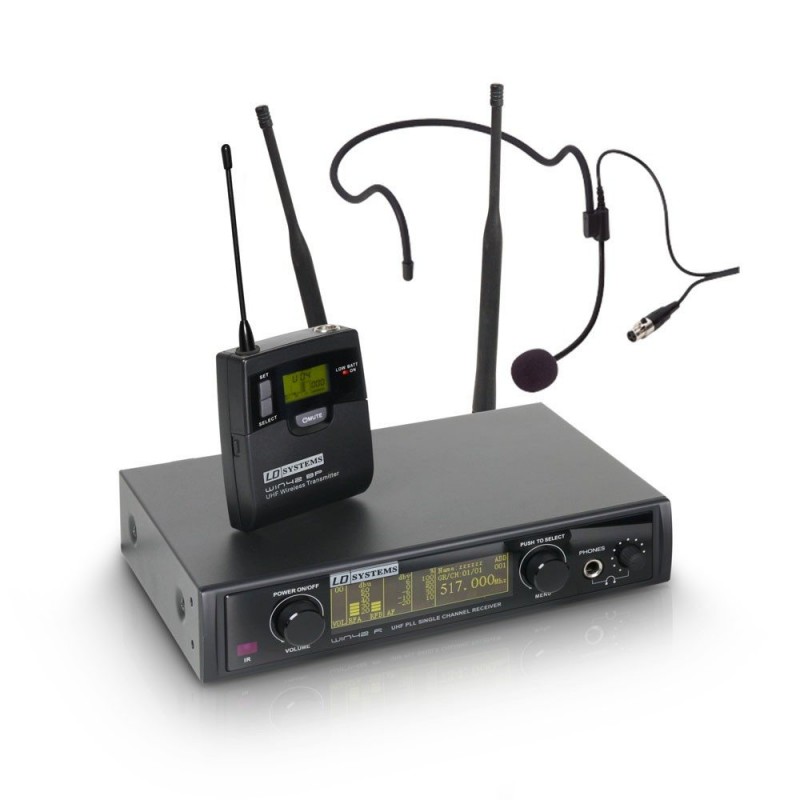

WIN 42 BPH B5 LD SYSTEMS - WIREL. HEADSET SYSTEM BEL.516-558

Due to the changed situation in terms of general frequency allocations for the operation of wireless systems from 2015, LD Systems has decided to develop the even more flexible and highly professional WIN 42 wireless system. With its excellent audio quality, the LD Systems WIN 42 UHF system offers numerous application possibilities for live performances and permanent installations. The operating UHF frequency range is 516 MHz to 558 MHz. Both the versions of the handheld microphone and the band transmitter offer every vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the hand transmitter can be changed quickly and easily (dynamic and capacitor capsules). The system has more than 1680 freely selectable frequencies, making it possible to operate up to 20 systems simultaneously. The "channel scan" function helps you find and tune to a transmission frequency without interference. This frequency is then easily and conveniently transmitted via an infrared connection from receiver to transmitter. The transmission power can be adjusted in 3 steps (10, 30, 50 mW) directly on the microphone, allowing adaptation to any environment. The half-rack True Diversity receiver incorporates many system functions, such as an indicator for the transmitter's battery status on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that can be switched on the receiver, and much more. A very professional system with the excellent value for money that is so characteristic of LD systems.

Specifications:

• Transmission frequency range 516 - 558 MHz
• LDWS100RK - LD Systems WIN 42 BPH B 5 19" Rack Kit
• Product Type Wireless Microphone System Accessories
• Type 19" Rack Kits
• Colour Black
• Material Steel
• Surface powder coating
• Weight 0.2 kg
• LDWIN42BPB5 - LD Systems WIN 42 BPH B 5 Bodypack transmitter for LD WIN 42 BPH B 5 wireless microphone system
• Belt Package Type
• Channels 1680
• Groups 20 groups + 1 user group
• Inputs Mini-XLR (3-pin) with phantom power supply (for headset)
• Frequency range 60 - 16,000 Hz
• Rated HF output power Variable (10, 30, 50 mW)
• Low power/battery status indicators (LED)
• Working time >14 hours (with alkaline batteries)
• Operating voltage 2 x AA battery
• Width 63 mm
• Height 87 mm
• Depth 25 mm
• Weight 0.1 kg
• Other features Transmission power adjustable in 3 phases
• LDWIN42RB5 - LD Systems WIN 42 BPH B 5 Receiver for LD WIN 42 wireless microphone system
• Type Receivers
• Antenna inputs 2
• Antenna connector BNC
• Noise Reduction Squelch
• Transmission optimisation address allocation
• Total harmonic distortion (THD) < 1 %.
• Signal-to-noise ratio > 100 dB
• Audio output, balanced XLR
• Audio output, unbalanced 6.3 mm jack
• Max. output level + 10 dBu
• Headphones ouput 1
• Headphone outputs 6.3 mm TRS
• Controls Power / Volume
• Operating voltage 13.5 V DC
• Operating voltage 13.5 V DC
• Width 212 mm
• Height 44 mm
• Depth 184 mm
• Weight 1 kg
• Accessories (included) User's Manual
• Other features channel search function
• LDWS100MH1 - LD Systems WIN 42 BPH B 5 Headset
• Directionality Cardioid
• Frequency range 20 - 20,000 Hz
• Nominal impedance 680 Ohm(s)
• Phantom power supplies 5 V
• Microphone input Mini-XLR (3-pin, female)
• Weight 0.049 kg
